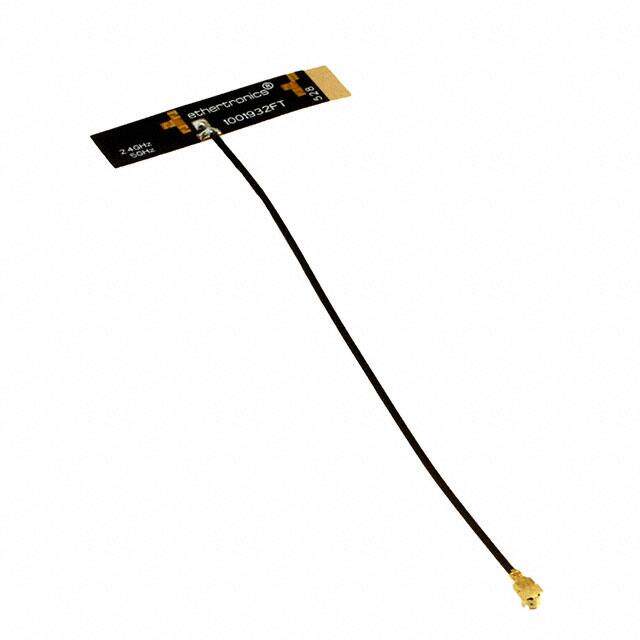

1001932FT-AA10L0100
RoHS
RoHS compliant
RoHS compliantPackage /
Category RF/IF and RFID / RF Antennas
Description
RF ANT 2.4GHZ/5GHZ PCB TRACE ADH
PDF
/
Buying Options
Total Price: USD $3
Unit Price: USD $3.0008
≥1 USD $3.0008
≥10 USD $2.69632
≥100 USD $2.549184
≥500 USD $2.209328
≥1000 USD $2.096054
≥3000 USD $1.880771
Inventory: 739
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.006 0.15mm
Height 152.4μm
Technical
Frequency (Center/Band) 2.4GHz 5GHz
Frequency Group UHF 2GHz~3GHz SHF f > 4GHz
Number of Bands 2
VSWR 2
Antenna Type PCB Trace
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Range 2.4GHz~2.5GHz 4.9GHz~5.9GHz
Gain 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi
Applications Bluetooth, Wi-Fi, WLAN, Zigbee?
Termination U.FL (UMCC), IPEX MHF1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Cable - 100mm
Series Prestta?
Packaging Bag
Physical
Mounting Type Adhesive
Mount Adhesive
Supply Chain
Factory Lead Time 9 Weeks
