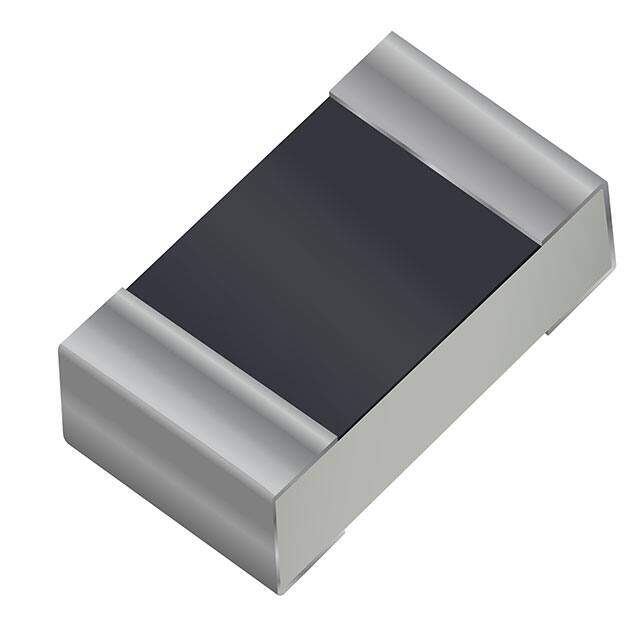

1001312 image
Favorite
1001312 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category RF/IF and RFID / RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
≥10 USD $0.65824
≥100 USD $0.618112
≥500 USD $0.504504
≥1000 USD $0.468618
≥3000 USD $0.398816
Inventory: 1416
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height (Max) 0.022 0.55mm
Height 54.991mm

Technical

Frequency (Center/Band) 2.4GHz
Frequency Group UHF 2GHz~3GHz
Number of Bands 1
VSWR 1.8
Antenna Type Chip
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Range 2.4GHz~2.5GHz
Gain 1.72dBi
Applications Bluetooth, Wi-Fi, WLAN, Zigbee?
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Savvi?
Published 2018
Packaging Cut Tape (CT)

Physical

Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
