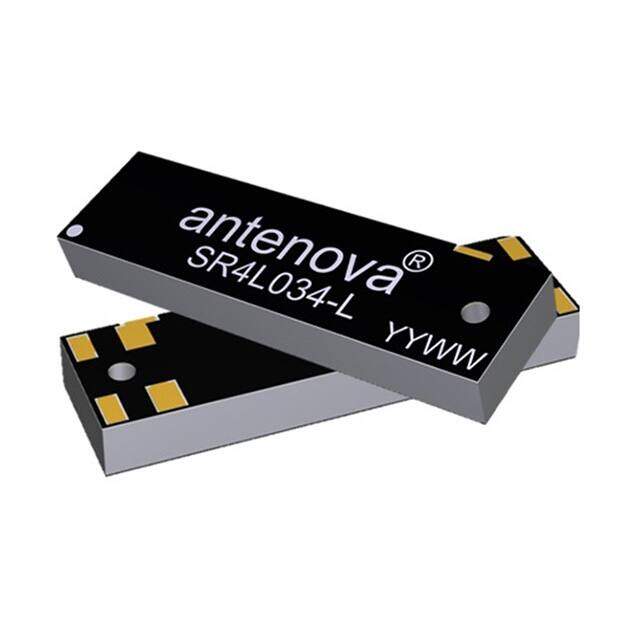

SR4L034-L
RoHS
RoHS compliant
RoHS compliantPackage /
Category RF/IF and RFID / RF Antennas
Description
Tape & Reel (TR) 4 Inversa Surface Mount RF Antenna 0.4dBi 1.6dBi 2.1dBi 3.5dBi 3.6dBi 829MHz 1.94GHz 2.35GHz 2.595GHz 50Ohm
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9656
≥1 USD $2.9656
≥10 USD $2.66552
≥100 USD $2.519616
≥500 USD $2.183808
≥1000 USD $2.071802
≥3000 USD $1.859018
Inventory: 80667
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Technical
Packaging Tape & Reel (TR)
Series Inversa
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Applications 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA
Construction COMPONENT
Polarization LINEAR
Gain 0.4dBi, 1.6dBi, 2.1dBi, 3.5dBi, 3.6dBi
Frequency Range 698MHz~798MHz 824MHz~960MHz 1.71GHz~2.17GHz 2.3GHz~2.4GHz 2.5GHz~2.69GHz
RF/Microwave Device Type MOBILE STATION ANTENNA
Operating Frequency-Max 960MHz
RF Family/Standard Cellular
Antenna Type PCB Trace
Operating Frequency-Min 698MHz
VSWR 2.5, 2.8, 3.5, 3.7
Number of Bands 4
Frequency Group Wide B
Frequency (Center/Band) 829MHz 1.94GHz 2.35GHz 2.595GHz
Characteristic Impedance 50Ohm
Return Loss -4.9dB, -5.1dB, -6dB, -6.6dB, -7dB
Dimensions
Height (Max) 0.130 3.30mm
Compliance
RoHS Status RoHS Compliant
