SKY65040-360LF
RoHS
RoHS compliant

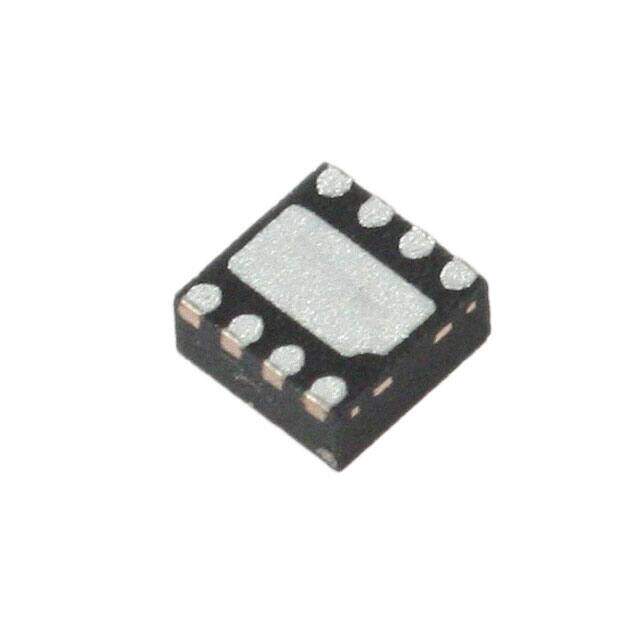

RoHS compliantPackage 8-VFDFN Exposed Pad
Category RF/IF and RFID / RF Amplifiers
Description
IC AMP LO-NOISE 1.5-2.4GHZ 8-QFN
PDF
/
Buying Options
Total Price: USD $8.06
Unit Price: USD $8.05505
≥1 USD $8.05505
≥10 USD $6.60915
≥100 USD $6.403
≥500 USD $6.1959
≥1000 USD $5.98975
Inventory: 2003
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 8-VFDFN Exposed Pad
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
Published 2009
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Terminal Finish MATTE TIN
HTS Code 8542.39.00.01
Voltage - Supply 5.5V
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Reach Compliance Code unknown
Frequency 1.5GHz~2.4GHz
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 8
JESD-30 Code S-XDSO-N8
Qualification Status Not Qualified
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Temperature Grade INDUSTRIAL
Test Frequency 1.95GHz
Operating Supply Current 100mA
Gain 25dB
Telecom IC Type RF FRONT END CIRCUIT
RF Type CDMA, GSM, WCDMA
Noise Figure 0.65dB
P1dB 16dBm
Dimensions
Height Seated (Max) 1mm
Length 2mm
Width 2mm
Compliance
RoHS Status ROHS3 Compliant
