SE2568U-R
RoHS
RoHS compliant

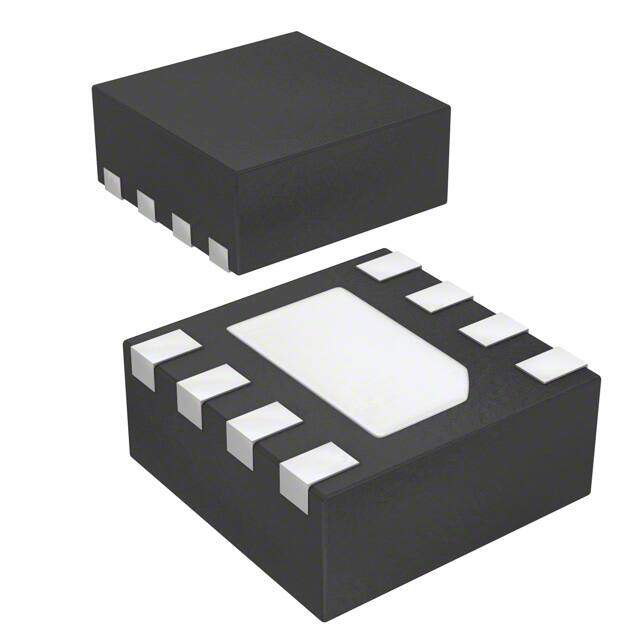

RoHS compliantPackage 8-XFDFN Exposed Pad
Category RF/IF and RFID / RF Amplifiers
Description
IC PWR AMP 2.4GHZ 8QFN
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.72485
≥1 USD $0.72485
≥10 USD $0.59565
≥100 USD $0.57665
≥500 USD $0.55765
≥1000 USD $0.5396
Inventory: 62004
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 2mm
Height Seated (Max) 0.5mm
Technical
P1dB 25dBm
RF Type 802.11b/g/n
Telecom IC Type TELECOM CIRCUIT
Gain 28dB
Nominal Supply Current 115mA
Operating Supply Current 175mA
Test Frequency 2.4GHz~2.5GHz
Temperature Grade INDUSTRIAL
Operating Supply Voltage 3.3V
Pin Count 8
Frequency 2.4GHz~2.5GHz
Depth 2mm
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 3V~5V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SiGe
Published 2014
Packaging Digi-Reel?
Physical
Number of Pins 8
Package / Case 8-XFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
