SE2568L-R
RoHS
RoHS compliant

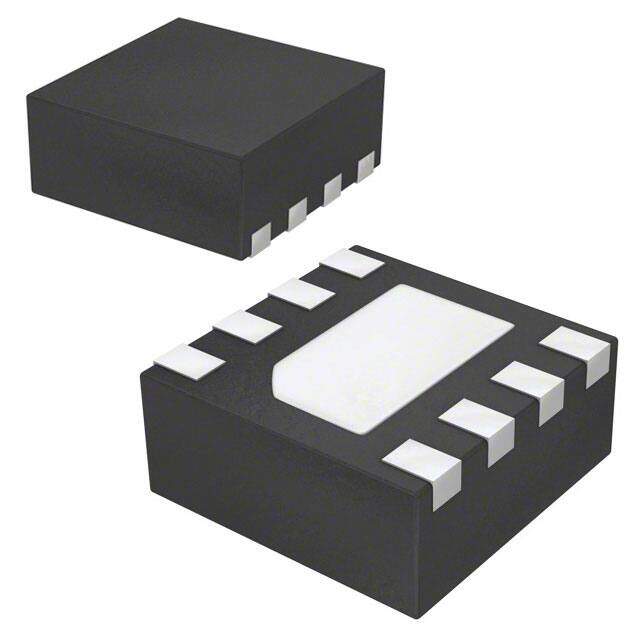

RoHS compliantPackage 8-VFDFN Exposed Pad
Category RF/IF and RFID / RF Amplifiers
Description
IC PWR AMP 2.4GHZ 8QFN
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.76545
≥1 USD $2.76545
≥10 USD $2.26955
≥100 USD $2.1983
≥500 USD $2.12705
≥1000 USD $2.05675
Inventory: 5081
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-VFDFN Exposed Pad
Surface Mount YES
Technical
Packaging Digi-Reel?
Published 2012
Series SiGe
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Voltage - Supply 2.7V~5V
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 2.4GHz~2.5GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 8
JESD-30 Code S-PDSO-N8
Operating Supply Voltage 3.3V
Temperature Grade INDUSTRIAL
Test Frequency 2.4GHz~2.5GHz
Operating Supply Current 175mA
Nominal Supply Current 115mA
Gain 28dB
Telecom IC Type TELECOM CIRCUIT
RF Type 802.11b/g
P1dB 25dBm
Dimensions
Height Seated (Max) 0.9mm
Length 2mm
Width 2mm
Compliance
RoHS Status ROHS3 Compliant
