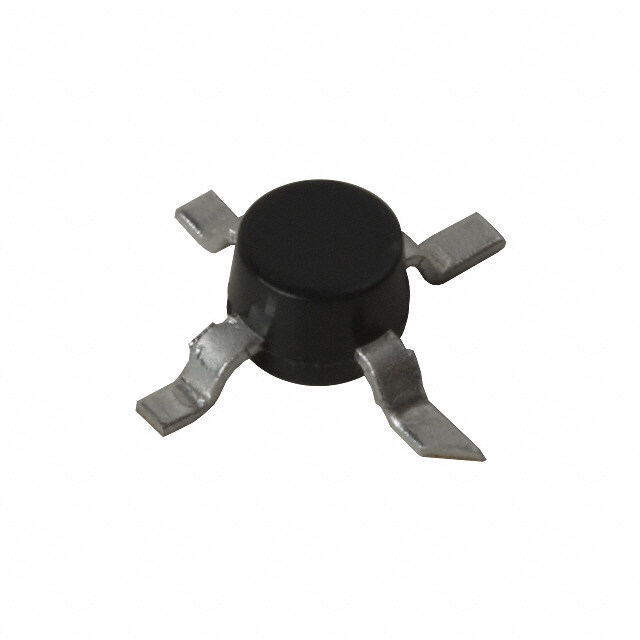

SGA-2386Z image
Favorite
SGA-2386Z image
Favorite

SGA-2386Z

RFMD
RoHS
/
Package SOT-86
Category RF/IF and RFID / RF Amplifiers
Description IC AMP HBT SIGE 5000MHZ SOT-86
PDF
/
Buying Options
Total Price: USD $144.57
Unit Price: USD $144.5653
≥1 USD $144.5653
≥10 USD $139.7469
≥100 USD $125.2898
Inventory: 705
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

P1dB 7.5 dBm
Noise Figure 3.2 dB
Characteristic Impedance 50Ohm
Input Power-Max (CW) 18dBm
Operating Frequency-Max 5000MHz
RF/Microwave Device Type WIDE BAND LOW POWER
Gain 15.3 dB
Operating Supply Current 23mA
Test Frequency 1.95GHz
Power Supplies 2.7V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Construction COMPONENT
Number of Functions 1
Technology BIPOLAR
Subcategory RF/Microwave Amplifiers
Terminal Finish Matte Tin (Sn)
Number of Terminations 4
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2008

Physical

Mounting Feature SURFACE MOUNT
Surface Mount YES
Package / Case SOT-86
