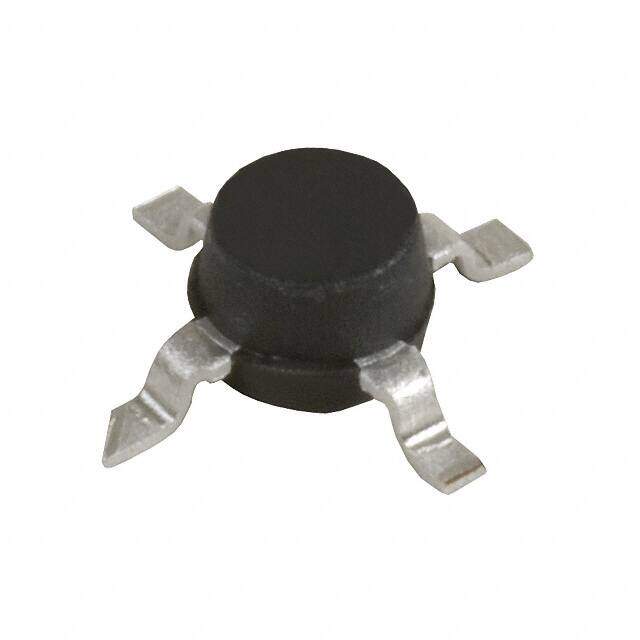

NLB-400-T1
RoHS
/
Package 4-Micro-X
Category RF/IF and RFID / RF Amplifiers
Description
IC AMP MMIC GAAS 6GHZ 4-MICROX
PDF
/
Buying Options
Total Price: USD $5.53
Unit Price: USD $5.52995
≥1 USD $5.52995
≥10 USD $4.53815
≥100 USD $4.39565
≥500 USD $4.2541
≥1000 USD $4.11255
Inventory: 8904
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Thickness 1.4mm
Technical
P1dB 14.6dBm
Noise Figure 4.1dB
Characteristic Impedance 50Ohm
Input Power-Max (CW) 20dBm
RF Type LMDS, VSAT, WLAN, UNII, DWDM, PTP PMP
VSWR-Max 2.2
RF/Microwave Device Type WIDE BAND LOW POWER
Gain 10.8dB ~ 11.5dB
Operating Supply Current 47mA
Power Supplies 3.9V
Operating Temperature (Min) -45°C
Operating Temperature (Max) 85°C
Frequency 0Hz~6GHz
Construction COMPONENT
Number of Functions 1
Voltage - Supply 3.6V~4.2V
Technology BIPOLAR
Subcategory RF/Microwave Amplifiers
HTS Code 8542.33.00.01
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code 5A991.G
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Published 2007
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 4-Micro-X
Mounting Type Surface Mount
