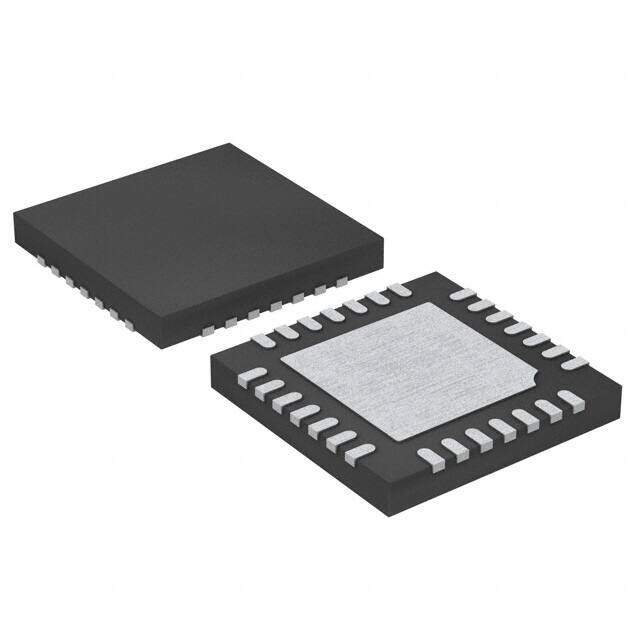

MLA-01122B-C4
RoHS
RoHS compliant
RoHS compliantPackage 24-UFQFN Exposed Pad
Category RF/IF and RFID / RF Amplifiers
Description
IC RF AMP GP 1GHZ-12GHZ 24SMT
PDF
/
Buying Options
Total Price: USD $59.72
Unit Price: USD $59.724311
≥1 USD $59.724311
≥10 USD $56.343699
≥100 USD $53.154424
≥500 USD $50.145685
≥1000 USD $47.307253
Inventory: 1110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
P1dB 13dBm
Noise Figure 1.9dB
Characteristic Impedance 50Ohm
Input Power-Max (CW) 13dBm
RF Type General Purpose
RF/Microwave Device Type WIDE BAND LOW POWER
Gain 19dB
Operating Supply Current 55mA
Test Frequency 12GHz
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Frequency 1GHz~12GHz
Construction COMPONENT
Voltage - Supply 5V
Terminal Finish Gold (Au)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
JESD-609 Code e4
Published 2005
Packaging Cut Tape (CT)
Physical
Package / Case 24-UFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
