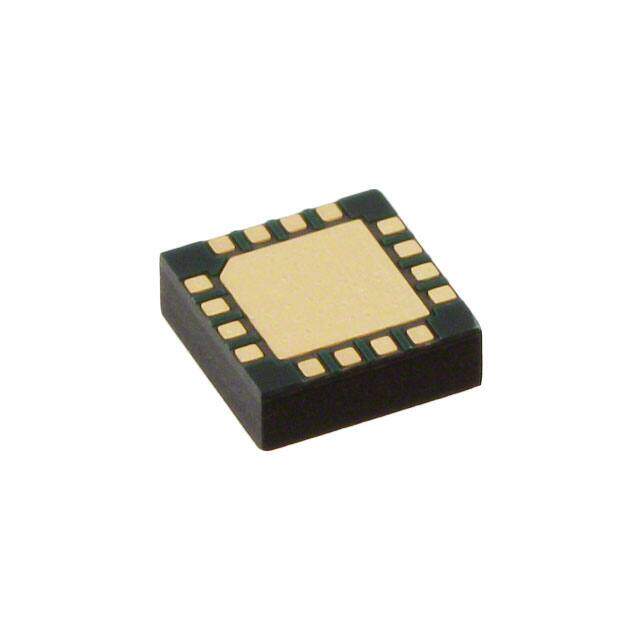

SST13LP05-MLCF
RoHS
RoHS compliant
RoHS compliantPackage 16-LFLGA Exposed Pad
Category RF/IF and RFID / RF Amplifiers
Description
RF Amplifier 2.4-2.5/4.9-5.8GHz 3.3V 802.11 a/b/g
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.4992
≥1 USD $2.4992
≥10 USD $2.24928
≥100 USD $2.171136
≥500 USD $2.10804
Inventory: 2736
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-LFLGA Exposed Pad
Number of Pins 16
Technical
Packaging Tape & Reel (TR)
Published 2000
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 16
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory RF/Microwave Amplifiers
Voltage - Supply 3V~3.6V
Number of Functions 2
Construction COMPONENT
Frequency 2.4GHz~2.5GHz 4.9GHz~5.8GHz
Operating Supply Voltage 3.3V
Number of Channels 2
Test Frequency 2.4GHz~2.5GHz
Operating Supply Current 235mA
Nominal Supply Current 270mA
Max Supply Current 270mA
Gain 29dB
RF/Microwave Device Type WIDE BAND MEDIUM POWER
RF Type 802.11a/b/g/WiFi, WLAN
Characteristic Impedance 50Ohm
P1dB 25dBm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
