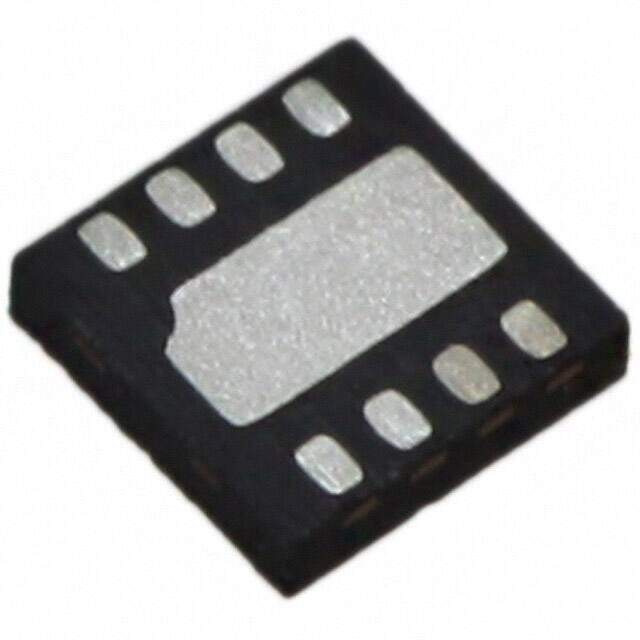

SST12LP19E-QX8E
RoHS
RoHS compliant
RoHS compliantPackage 8-XFDFN Exposed Pad
Category RF/IF and RFID / RF Amplifiers
Description
MICROCHIP SST12LP19E-QX8E PA, WLAN 11B/G/N, LOW CUR, 8XSON
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.30495
≥1 USD $0.30495
≥10 USD $0.24985
≥100 USD $0.24225
≥500 USD $0.23465
≥1000 USD $0.22705
Inventory: 7002
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-XFDFN Exposed Pad
Number of Pins 8
Technical
Packaging Tape & Reel (TR)
Published 2000
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature HIGH RELIABILITY
Subcategory RF/Microwave Amplifiers
Number of Functions 1
Construction COMPONENT
Frequency 2.4GHz~2.5GHz
Operating Supply Voltage 3.3V
Number of Channels 1
Operating Supply Current 200mA
Nominal Supply Current 400mA
Gain 25 dB
RF/Microwave Device Type NARROW BAND MEDIUM POWER
RF Type 802.11b/g/n
Input Power-Max (CW) 5dBm
Characteristic Impedance 50Ohm
Power Gain 25dB
Dimensions
Height 450μm
Length 2mm
Width 2mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
