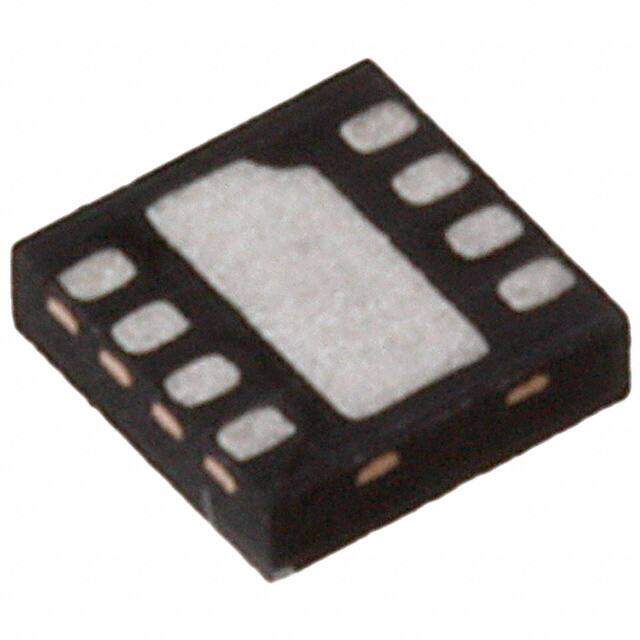

SST12LP17E-QU8E
RoHS
RoHS compliant
RoHS compliantPackage 8-UDFN
Category RF/IF and RFID / RF Amplifiers
Description
IC, RF IC, 15 dB, 2.4GHz to 2.5GHz, SON-8
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.60104
≥100 USD $0.565312
≥500 USD $0.526152
Inventory: 269
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 2mm
Length 2mm
Height 550μm
Technical
Power Gain 28dB
P1dB 24dBm
RF Type 802.11b/g/n
Telecom IC Type TELECOM CIRCUIT
Gain 29dB
Nominal Supply Current 155mA
Test Frequency 2.4GHz
Number of Channels 1
Temperature Grade INDUSTRIAL
Operating Supply Voltage 3.3V
Time@Peak Reflow Temperature-Max (s) 40
Frequency 2.4GHz~2.5GHz
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish MATTE TIN
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Published 2016
Packaging Cut Tape (CT)
Physical
Number of Pins 8
Package / Case 8-UDFN
Mounting Type Surface Mount
Mount Surface Mount
