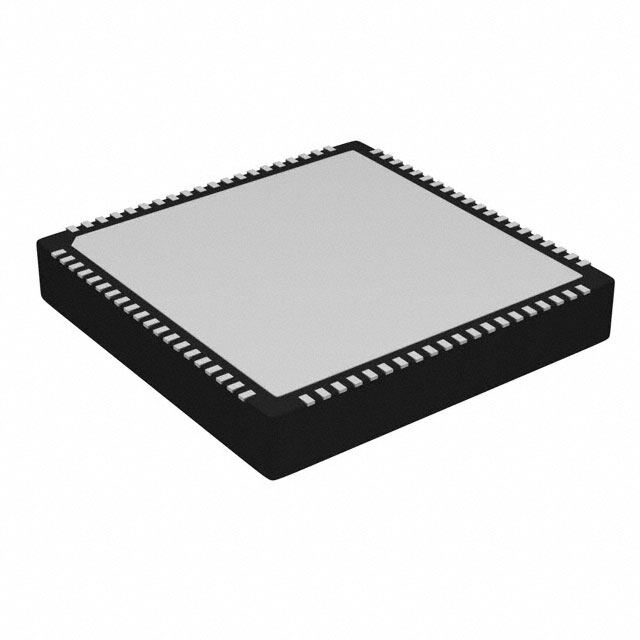

SC2200A-00A00E
RoHS
RoHS compliant
RoHS compliantPackage 80-VFQFN Exposed Pad
Category RF/IF and RFID / RF Amplifiers
Description
IC AMP CDMA 698MHZ-2.7GHZ 80QFN
PDF
/
Buying Options
Total Price: USD $62.21
Unit Price: USD $62.21075
≥1 USD $62.21075
≥10 USD $51.0454
≥100 USD $49.45035
≥500 USD $47.8553
≥1000 USD $46.2593
Inventory: 3807
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 11mm
Length 11mm
Height Seated (Max) 0.9mm
Technical
RF Type CDMA, LTE, W-CDMA, WiMAX
Telecom IC Type TELECOM CIRCUIT
Gain 10dB
Current - Supply 1.3A
JESD-30 Code S-XQCC-N80
Base Part Number SC2200
Frequency 698MHz~2.7GHz
Reach Compliance Code unknown
Terminal Pitch 0.5mm
Supply Voltage 1.8V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 1.8V
HTS Code 8542.39.00.01
Number of Terminations 80
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2016
Packaging Tube
Physical
Surface Mount YES
Package / Case 80-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 6 Weeks
