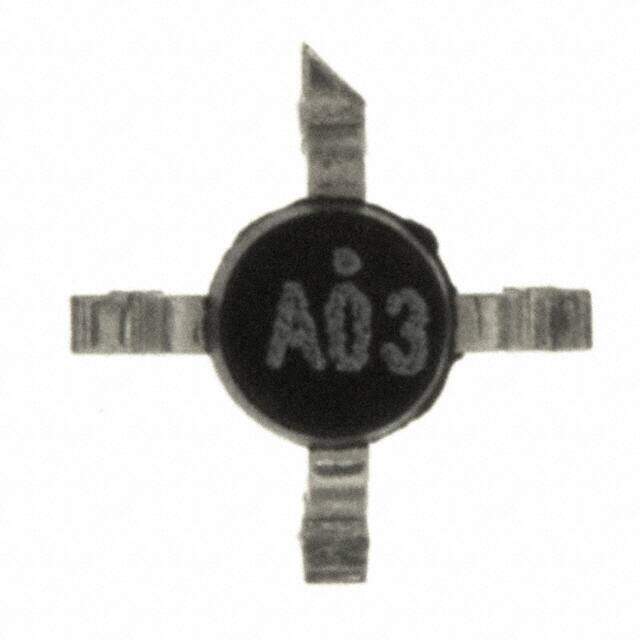

MSA-0386-TR1G
RoHS
RoHS compliant
RoHS compliantPackage SOT-86
Category RF/IF and RFID / RF Amplifiers
Description
AMP MMIC SI BIPOLAR 86SMD PLAST
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.21255
≥1 USD $2.21255
≥10 USD $1.81545
≥100 USD $1.75845
≥500 USD $1.70145
≥1000 USD $1.6454
Inventory: 2737
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
P1dB 10dBm ~ 12dBm
Noise Figure 6dB
Characteristic Impedance 50Ohm
Input Power-Max (CW) 13dBm
VSWR-Max 1.7
RF/Microwave Device Type WIDE BAND LOW POWER
Gain 10dB ~ 12dB
Current - Supply 70mA
Test Frequency 1GHz
Power Supplies 5V
Frequency 2.4GHz
Reach Compliance Code unknown
Construction COMPONENT
Number of Functions 1
Voltage - Supply 4V~6V
Technology BIPOLAR
Subcategory RF/Microwave Amplifiers
HTS Code 8542.33.00.01
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Published 2005
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case SOT-86
Mounting Type Surface Mount
