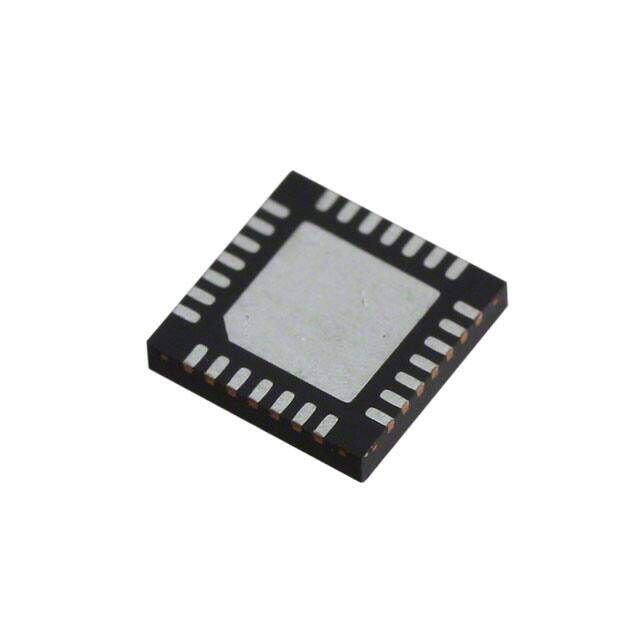

MGA-43228-BLKG
RoHS
/
Package 28-VFQFN Exposed Pad
Category RF/IF and RFID / RF Amplifiers
Description
BROADCOM LIMITED MGA-43228-BLKG AMP, LIN POWER, 2.3-2.5GHZ, 28QFN
PDF
/
Buying Options
Total Price: USD $27.65
Unit Price: USD $27.64975
≥1 USD $27.64975
≥10 USD $22.68695
≥100 USD $21.97825
≥500 USD $21.2686
≥1000 USD $20.5599
Inventory: 203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-VFQFN Exposed Pad
Number of Pins 28
Technical
Packaging Strip
Published 2004
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 150°C
Subcategory RF/Microwave Amplifiers
Max Power Dissipation 8W
Technology GAAS
Voltage - Supply 5V
Number of Functions 1
Construction COMPONENT
Frequency 2.3GHz~2.5GHz
Power Supplies 5V
Number of Channels 1
Test Frequency 2.4GHz
Operating Supply Current 500mA
Impedance 50Ohm
Nominal Supply Current 500mA
Power Dissipation 8W
Gain 38.5dB
RF/Microwave Device Type NARROW BAND HIGH POWER
RF Type 802.16 WiMAX
Input Power-Max (CW) 20dBm
Noise Figure 2.1dB
P1dB 35.5dBm
Dimensions
Height 850μm
Length 5mm
Width 5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
