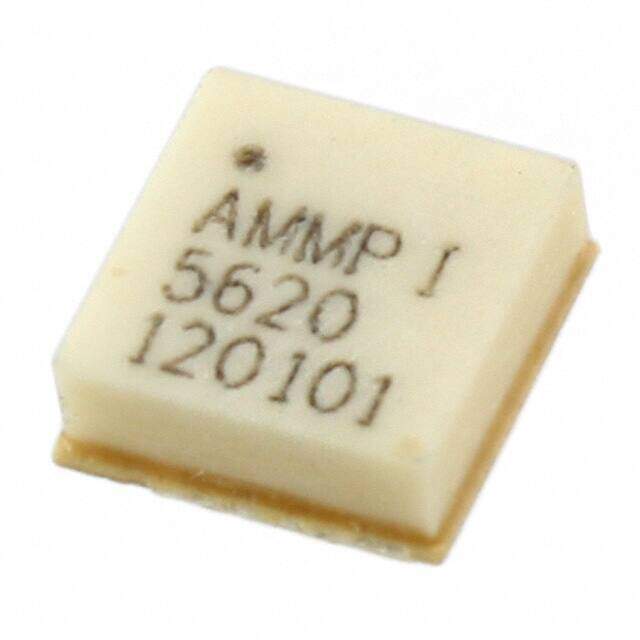

AMMP-5620-BLKG image
Favorite
AMMP-5620-BLKG image
Favorite

AMMP-5620-BLKG

Broadcom Limited
RoHS
RoHS RoHS compliant
Package 8-LQFN
Category RF/IF and RFID / RF Amplifiers
Description RF Amp Module Single Gain Amp 20GHz 8-Pin SMT Bulk
PDF
/
Inventory: 5209
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mounting Type Surface Mount
Package / Case 8-LQFN
Surface Mount YES

Technical

Packaging Strip
Published 2017
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Nickel/Gold (Ni/Au)
HTS Code 8542.33.00.01
Subcategory RF/Microwave Amplifiers
Technology GAAS
Voltage - Supply 5V
Number of Functions 1
Construction COMPONENT
Reach Compliance Code compliant
Frequency 6GHz~20GHz
Power Supplies 5V
Test Frequency 18GHz
Current - Supply 95mA
Gain 17.5dB
RF/Microwave Device Type WIDE BAND LOW POWER
RF Type General Purpose
Input Power-Max (CW) 20dBm
Characteristic Impedance 50Ohm
Noise Figure 5.1dB
P1dB 14.8dBm

Compliance

RoHS Status RoHS Compliant
