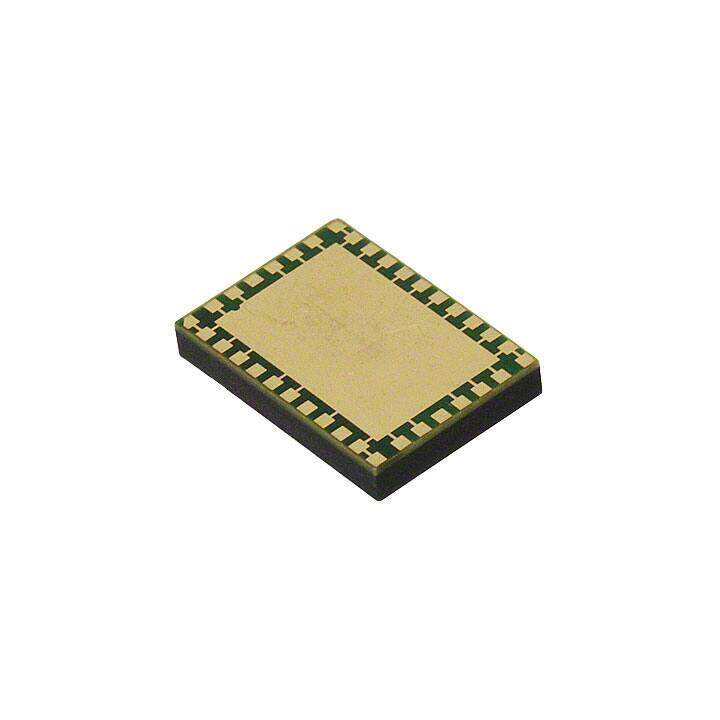

ALM-11236-BLKG image
Favorite
ALM-11236-BLKG image
Favorite

ALM-11236-BLKG

Broadcom Limited
RoHS
/
Package 36-TQFN Exposed Pad, 6 Lead
Category RF/IF and RFID / RF Amplifiers
Description RF Amplifier TMA Bypass LNA Module
PDF
/
Inventory: 5105
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 7mm
Length 10mm
Height 1.5mm

Technical

P1dB 3.5dBm
Noise Figure 0.67dB
RF Type General Purpose
Telecom IC Type TELECOM CIRCUIT
Gain 15.9dB
Nominal Supply Current 99mA
Impedance 50Ohm
Operating Supply Current 99mA
Test Frequency 1.785GHz
Number of Channels 1
Temperature Grade INDUSTRIAL
Operating Supply Voltage 5V
Frequency 1.71GHz~1.85GHz
Terminal Pitch 0.845mm
Supply Voltage 5V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position QUAD
Max Power Dissipation 715mW
Min Operating Temperature -65°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 36
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Published 2013
Packaging Strip

Physical

Number of Pins 36
Package / Case 36-TQFN Exposed Pad, 6 Lead
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
