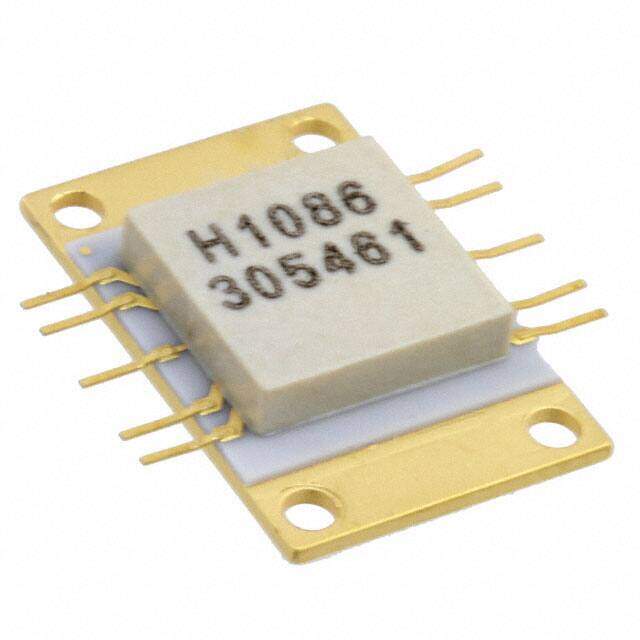

HMC1086F10
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category RF/IF and RFID / RF Amplifiers
Description
IC RF AMP GP 2GHZ-6GHZ
PDF
/
Buying Options
Total Price: USD $976.94
Unit Price: USD $976.94105
≥1 USD $976.94105
Inventory: 55
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Technical
Characteristic Impedance 50Ohm
Input Power-Max (CW) 33dBm
RF Type General Purpose
VSWR-Max 6
RF/Microwave Device Type WIDE BAND HIGH POWER
Gain 23dB
Operating Supply Current 1.1A
Test Frequency 2GHz~4GHz
Number of Channels 1
Operating Supply Voltage 28V
Pin Count 10
Base Part Number HMC1086
Frequency 2GHz~6GHz
Construction COMPONENT
Max Power Dissipation 63.6W
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Packaging Strip
Physical
Number of Pins 10
Package / Case 10-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 2 weeks ago)
Factory Lead Time 8 Weeks
