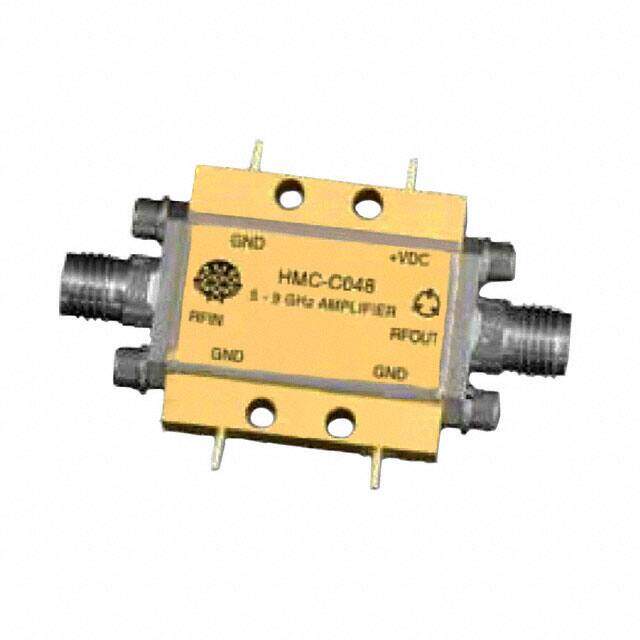

HMC-C048
RoHS
RoHS compliant
RoHS compliantPackage Module, SMA Connectors
Category RF/IF and RFID / RF Amplifiers
Description
RF Amp Module Single Low Noise Amp 9000MHz Tray
PDF
/
Buying Options
Total Price: USD $3420.46
Unit Price: USD $3420.4632
≥1 USD $3420.4632
Inventory: 67
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Lifecycle Status PRODUCTION (Last Updated: 1 week ago)
Physical
Mounting Type Connector Mount
Package / Case Module, SMA Connectors
Number of Pins 0
Technical
Packaging Bulk
JESD-609 Code e4
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Additional Feature SMA-F
Voltage - Supply 12V
Construction COAXIAL
Frequency 5GHz~9GHz
Base Part Number HMC
Pin Count 0
Operating Temperature (Max) 85°C
Operating Temperature (Min) -55°C
Test Frequency 5GHz
Operating Supply Current 105mA
Gain 22.5dB
RF/Microwave Device Type WIDE BAND LOW POWER
RF Type VSAT
Noise Figure 1.75dB
P1dB 14.8dBm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
