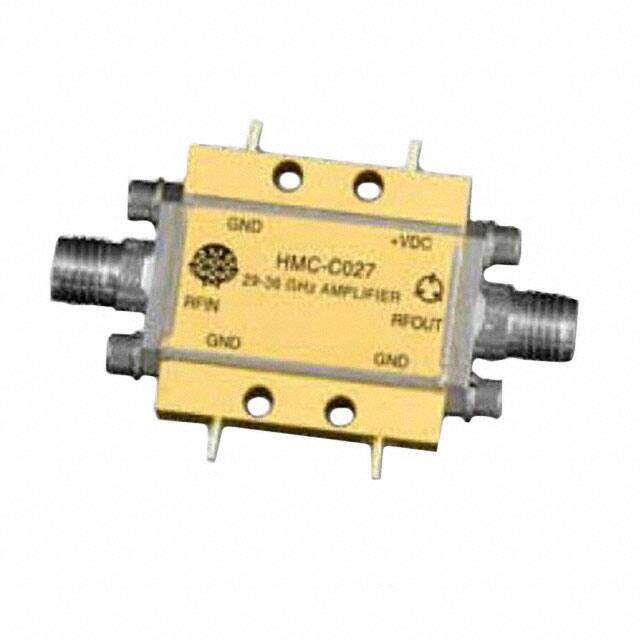

HMC-C027 image
Favorite
HMC-C027 image
Favorite
RoHS
RoHS RoHS compliant
Package Module, SMA Connectors
Category RF/IF and RFID / RF Amplifiers
Description RF Amp Module Single Low Noise Amp 36000MHz Tray
PDF
/
Inventory: 2666
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

RF Type VSAT
RF/Microwave Device Type WIDE BAND LOW POWER
Gain 20dB
Operating Supply Current 80mA
Pin Count 0
Base Part Number HMC
Frequency 29GHz~36GHz
Construction COAXIAL
Voltage - Supply 3V
Additional Feature 2.92 MM-F
Min Operating Temperature -55°C
Max Operating Temperature 85°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e4
Packaging Bulk
P1dB 11dBm
Noise Figure 2.9dB
Input Power-Max (CW) 5dBm

Physical

Number of Pins 0
Package / Case Module, SMA Connectors
Mounting Type Connector Mount
Mount Screw
Contact Plating Gold

Supply Chain

Lifecycle Status PRODUCTION (Last Updated: 1 week ago)
Factory Lead Time 13 Weeks

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant
