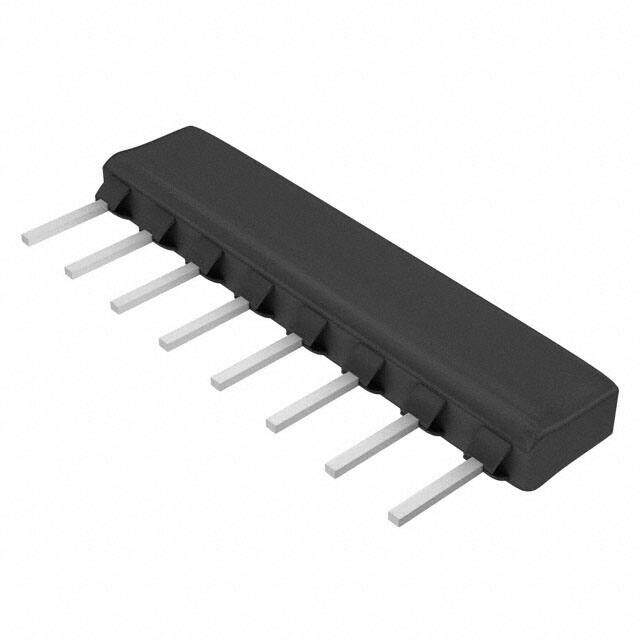

CSC08A031K00FEK
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP
Category Resistors / Resistor Networks, Arrays
Description
8-SIP ARRAY/NETWORK RESISTOR CSC 0.790Lx0.098W 20.07mmx2.49mm 1kOhm ±100ppm/C ±1%
PDF
/
Buying Options
Total Price: USD $2.2
Unit Price: USD $2.2
≥1 USD $2.2
≥10 USD $1.84976
≥100 USD $1.410552
≥500 USD $0.921448
≥1000 USD $0.893094
≥3000 USD $0.868287
Inventory: 1076
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 34 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-SIP
Number of Pins 8
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series CSC
Size / Dimension 0.790Lx0.098W 20.07mmx2.49mm
Tolerance ±1%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 1kOhm
Terminal Finish Tin (Sn)
Subcategory ARRAY/NETWORK RESISTOR
Technology METAL GLAZE/THICK FILM
Construction Conformal Coating
Resistor Type ARRAY/NETWORK RESISTOR
Reach Compliance Code unknown
Lead Length 3.3mm
Working Voltage 100V
Size Code 7910
Power Dissipation 1W
Number of Resistors 4
Circuit Type Isolated
Power Per Element 300mW
Resistor-Ratio-Drift ±50ppm/°C
Dimensions
Height 4.953mm
Height Seated (Max) 0.195 4.95mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
