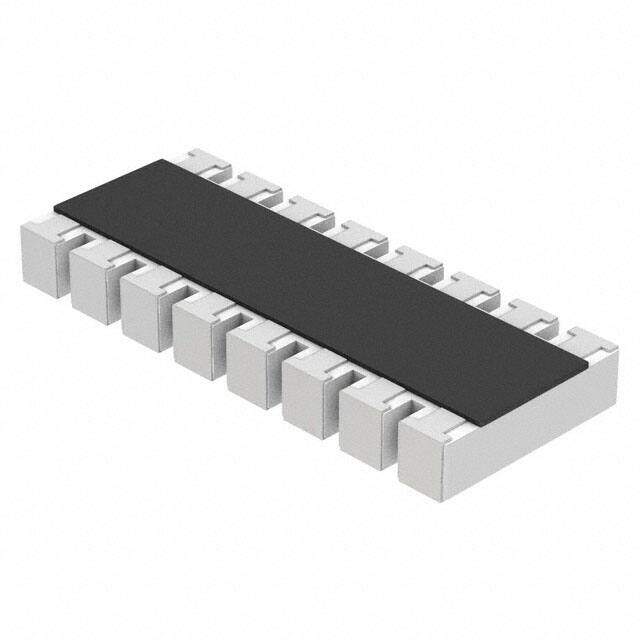

EXB-Q16P102J
RoHS
RoHS compliant
RoHS compliantPackage 1506, Convex, Long Side Terminals
Category Resistors / Resistor Networks, Arrays
Description
1506Convex Long Side Terminals ARRAY/NETWORK RESISTOR EXB 0.150Lx0.063W 3.80mmx1.60mm 1kOhm ±200ppm/C ±5%
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
≥10 USD $0.46552
≥100 USD $0.4312
≥500 USD $0.393888
≥1000 USD $0.324016
≥3000 USD $0.297264
Inventory: 7268
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1506, Convex, Long Side Terminals
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series EXB
Size / Dimension 0.150Lx0.063W 3.80mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Termination SMD/SMT
Temperature Coefficient ±200ppm/°C
Resistance 1kOhm
Terminal Finish Tin (Sn)
Voltage - Rated 25V
Subcategory ARRAY/NETWORK RESISTOR
Voltage - Rated DC 50V
Packing Method TR, PUNCHED, 7 INCH
Technology METAL GLAZE/THICK FILM
Number of Functions 1
Terminal Pitch 500μm
Construction Chip
Resistor Type ARRAY/NETWORK RESISTOR
Case Code (Metric) 3816
Rated Power Dissipation (P) 0.025W
Case Code (Imperial) 1506
Number of Contacts 16
Number of Elements 15
Number of Resistors 15
Circuit Type Bussed
Power Per Element 25mW
Element Power Dissipation 0.025W
Dimensions
Height 558.8μm
Height Seated (Max) 0.022 0.55mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
