EXB-N8V3R0JX
RoHS
RoHS compliant

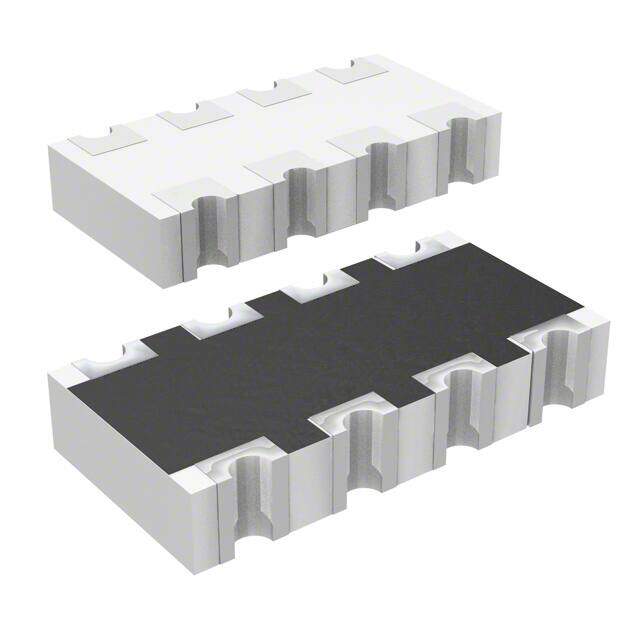

RoHS compliantPackage 0804, Concave, Long Side Terminals
Category Resistors / Resistor Networks, Arrays
Description
0804Concave Long Side Terminals 0804 EXB 0.079Lx0.039W 2.00mmx1.00mm 3Ohm ±200ppm/C ±5%
PDF
/
Buying Options
Total Price: USD $0.12
Unit Price: USD $0.1232
≥1 USD $0.1232
≥10 USD $0.09768
≥100 USD $0.074624
≥500 USD $0.054032
≥1000 USD $0.038016
≥3000 USD $0.03073
Inventory: 1268
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0804, Concave, Long Side Terminals
Number of Pins 8
Supplier Device Package 0804
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series EXB
Size / Dimension 0.079Lx0.039W 2.00mmx1.00mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Termination SMD/SMT
Temperature Coefficient ±200ppm/°C
Resistance 3Ohm
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Voltage - Rated 50V
Voltage - Rated DC 100V
Terminal Pitch 500μm
Number of Contacts 8
Number of Resistors 4
Circuit Type Isolated
Power Per Element 31mW
Dimensions
Height 558.8μm
Height Seated (Max) 0.022 0.55mm
Length 2.0066mm
Width 1mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
