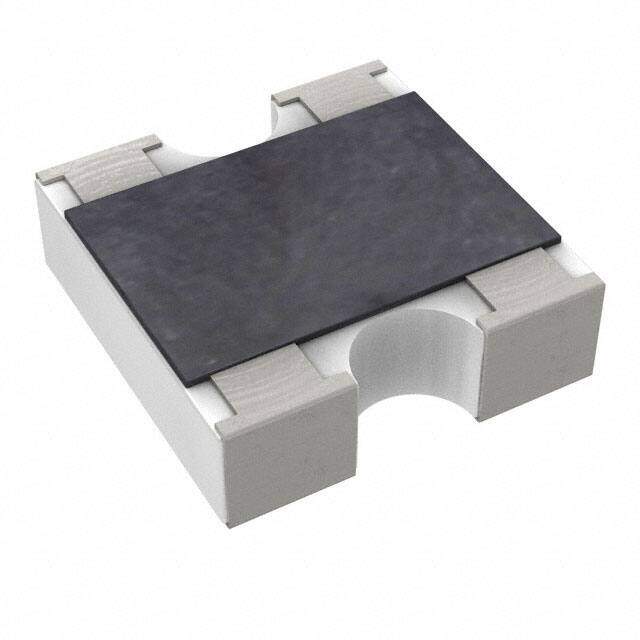

EXB-34V332JV
RoHS
RoHS compliant
RoHS compliantPackage 0606, Convex
Category Resistors / Resistor Networks, Arrays
Description
0606Convex ARRAY/NETWORK RESISTOR EXB 0.063Lx0.063W 1.60mmx1.60mm 3.3kOhm ±200ppm/C ±5%
PDF
/
Buying Options
Total Price: USD $0.13
Unit Price: USD $0.132
≥1 USD $0.132
≥10 USD $0.10472
≥100 USD $0.080608
≥500 USD $0.058256
≥1000 USD $0.041008
≥3000 USD $0.033194
Inventory: 26064
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0606, Convex
Terminal Shape WRAPAROUND
Number of Pins 4
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2008
Series EXB
Size / Dimension 0.063Lx0.063W 1.60mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Convex
Temperature Coefficient ±200ppm/°C
Resistance 3.3kOhm
Terminal Finish Tin (Sn)
Applications Automotive AEC-Q200
Additional Feature STANDARD: IEC60115-9
Subcategory Array/Network Resistors
Voltage - Rated DC 100V
Packing Method TR, PUNCHED, 7 INCH
Technology METAL GLAZE/THICK FILM
Number of Functions 2
Terminal Pitch 800μm
Depth 1.6mm
Construction Chip
Resistor Type ARRAY/NETWORK RESISTOR
Military Standard Not
Case Code (Imperial) 0603
Number of Elements 1
Working Voltage 50V
Number of Resistors 2
Circuit Type Isolated
Power Per Element 62.5mW
Dimensions
Height 609.6μm
Height Seated (Max) 0.024 0.60mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
