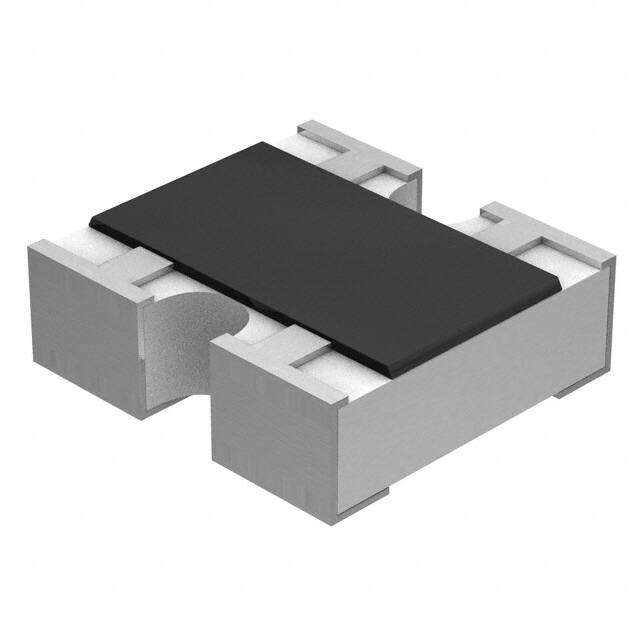

EXB-14V560JX
RoHS
RoHS compliant
RoHS compliantPackage 0302 (0805 Metric), Convex, Long Side Terminals
Category Resistors / Resistor Networks, Arrays
Description
0302 (0805Metric) Convex Long Side Terminals ARRAY/NETWORK RESISTOR EXB 0.031Lx0.024W 0.80mmx0.60mm 56Ohm ±200ppm/C ±5%
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
≥10 USD $0.20416
≥100 USD $0.15664
≥500 USD $0.11352
≥1000 USD $0.079904
≥3000 USD $0.064592
Inventory: 35662
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 350μm
Height Seated (Max) 0.018 0.45mm
Height 457.2μm
Technical
Element Power Dissipation 0.031W
Power Per Element 31mW
Circuit Type Isolated
Number of Resistors 2
Number of Elements 1
Case Code (Imperial) 0302
Rated Power Dissipation (P) 0.031W
Case Code (Metric) 0805
Reference Standard IEC60115-9
Military Standard Not
Resistor Type ARRAY/NETWORK RESISTOR
Construction Chip
Depth 600μm
Terminal Pitch 500μm
Number of Functions 2
Packing Method TR, PUNCHED, 7 INCH
Voltage - Rated DC 25V
Subcategory Array/Network Resistors
Voltage - Rated 12.5V
Composition Thick Film
Terminal Finish Tin (Sn)
Resistance 56Ohm
Temperature Coefficient ±200ppm/°C
Termination Convex
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.031Lx0.024W 0.80mmx0.60mm
Series EXB
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Number of Pins 4
Terminal Shape WRAPAROUND
Package / Case 0302 (0805 Metric), Convex, Long Side Terminals
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
