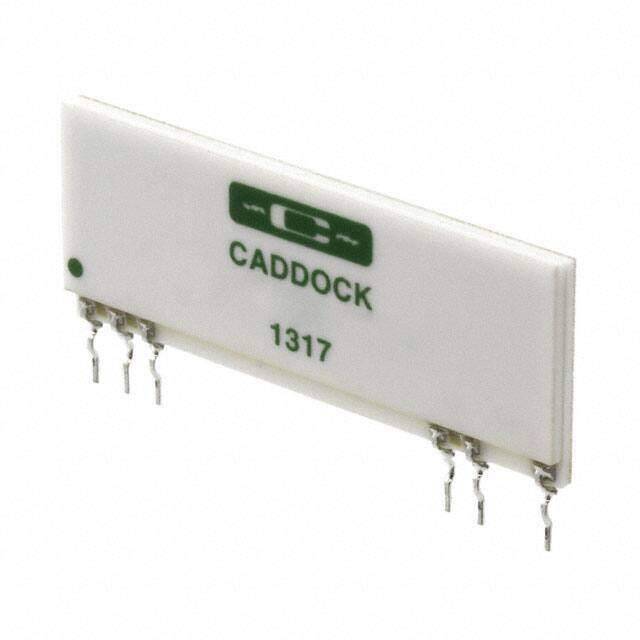

HVD5-B10M-050-05
RoHS
RoHS compliant
RoHS compliantPackage 15-SIP, 6 Leads
Category Resistors / Resistor Networks, Arrays
Description
15-SIP 6Leads ARRAY/NETWORK RESISTOR HVD 1.500Lx0.110W 38.10mmx2.79mm 100kOhm 9.9MOhm ±30ppm/C ±0.1%
PDF
/
Buying Options
Total Price: USD $36.58
Unit Price: USD $36.5816
≥1 USD $36.5816
≥10 USD $30.5448
≥100 USD $29.321952
≥500 USD $27.818912
≥1000 USD $25.75452
≥3000 USD $25.554109
Inventory: 697
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.610 15.50mm
Height 15.494mm
Technical
Second/Last Element Resistance 100000Ohm
Resistor Matching Ratio ±0.05%
First Element Resistance 9900000Ohm
Resistor-Ratio-Drift ±5ppm/°C
Power Per Element 31mW
Circuit Type Voltage Divider
Number of Resistors 2
Working Voltage 1500V
Number of Elements 2
Lead Length 3.81mm
Resistor Type ARRAY/NETWORK RESISTOR
Construction Rectangular
Number of Functions 1
Technology METAL GLAZE/THICK FILM
Additional Feature ULTRA PRECISION
Applications Voltage Divider (TCR Matched)
Terminal Finish Tin/Silver (Sn/Ag)
Resistance 100kOhm 9.9MOhm
Temperature Coefficient ±30ppm/°C
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±0.1%
Size / Dimension 1.500Lx0.110W 38.10mmx2.79mm
Series HVD
Published 2004
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Number of Pins 6
Terminal Shape WIRE
Package / Case 15-SIP, 6 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
