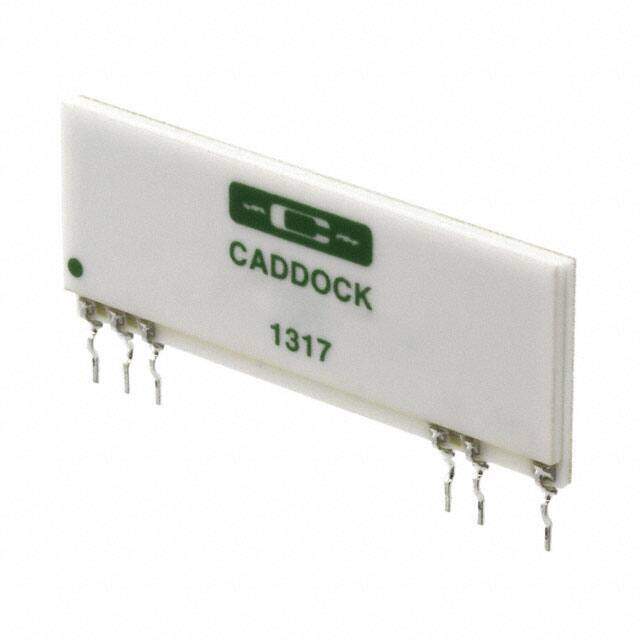

HVD5-A20M-050-05
RoHS
RoHS compliant
RoHS compliantPackage 15-SIP, 6 Leads
Category Resistors / Resistor Networks, Arrays
Description
15-SIP 6Leads ARRAY/NETWORK RESISTOR HVD 1.500Lx0.110W 38.10mmx2.79mm 20kOhm 19.98MOhm ±30ppm/C ±0.1%
PDF
/
Buying Options
Total Price: USD $46.77
Unit Price: USD $46.772
≥1 USD $46.772
≥10 USD $39.2876
≥100 USD $38.084992
≥500 USD $36.080352
≥1000 USD $33.077
Inventory: 203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 15-SIP, 6 Leads
Terminal Shape WIRE
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2004
Series HVD
Size / Dimension 1.500Lx0.110W 38.10mmx2.79mm
Tolerance ±0.1%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
Termination SIP
Temperature Coefficient ±30ppm/°C
Resistance 20kOhm 19.98MOhm
Terminal Finish Tin/Silver (Sn/Ag)
Applications Voltage Divider (TCR Matched)
Additional Feature ULTRA PRECISION
Technology METAL GLAZE/THICK FILM
Number of Functions 1
Construction Rectangular
Resistor Type ARRAY/NETWORK RESISTOR
Lead Length 3.81mm
Number of Elements 2
Number of Resistors 2
Circuit Type Voltage Divider
Power Per Element 31mW
Resistor-Ratio-Drift ±5ppm/°C
Resistor Matching Ratio ±0.05%
Dimensions
Height 15.494mm
Height Seated (Max) 0.610 15.50mm
Compliance
RoHS Status ROHS3 Compliant
