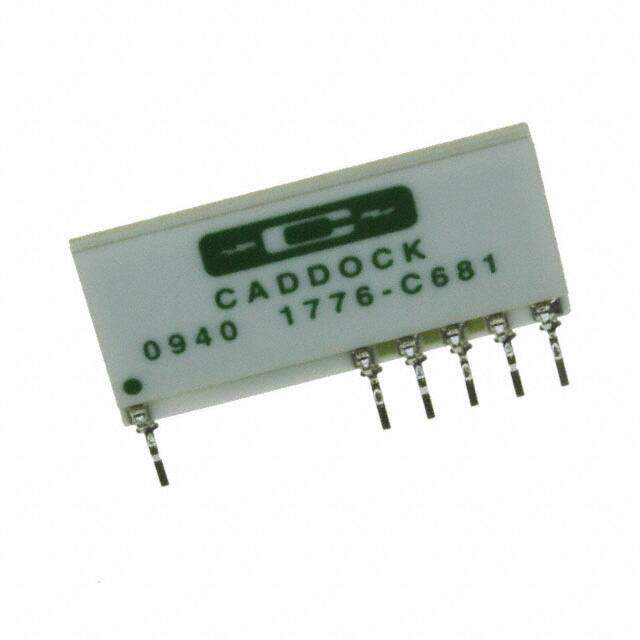

1776-C68
RoHS
RoHS compliant
RoHS compliantPackage 10-SIP, 6 Leads
Category Resistors / Resistor Networks, Arrays
Description
10-SIP 6Leads ARRAY/NETWORK RESISTOR 1776 1.000Lx0.110W 25.40mmx2.79mm 1kOhm 9kOhm 90kOhm 900kOhm 9MOhm ±30ppm/C ±0.1%
PDF
/
Buying Options
Total Price: USD $14.54
Unit Price: USD $14.5376
≥1 USD $14.5376
≥10 USD $12.43264
≥100 USD $11.632544
≥500 USD $10.905664
≥1000 USD $9.742304
≥3000 USD $9.669616
Inventory: 547
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.550 13.97mm
Height 13.97mm
Technical
Resistor-Ratio-Drift ±10ppm/°C
Power Per Element 62.5mW
Circuit Type Decade Resistor
Number of Resistors 5
Working Voltage 1200V
Number of Elements 5
Lead Length 3.81mm
Resistor Type ARRAY/NETWORK RESISTOR
Construction Rectangular
Number of Functions 1
Technology METAL GLAZE/THICK FILM
Additional Feature PRECISION, RATED AC VOLTAGE: 1200V
Applications Voltage Divider (TCR Matched)
Terminal Finish Tin/Silver (Sn/Ag)
Resistance 1kOhm 9kOhm 90kOhm 900kOhm 9MOhm
Temperature Coefficient ±30ppm/°C
ECCN Code EAR99
Termination SIP
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±0.1%
Size / Dimension 1.000Lx0.110W 25.40mmx2.79mm
Series 1776
Published 2010
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Number of Pins 6
Terminal Shape FLAT
Package / Case 10-SIP, 6 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
