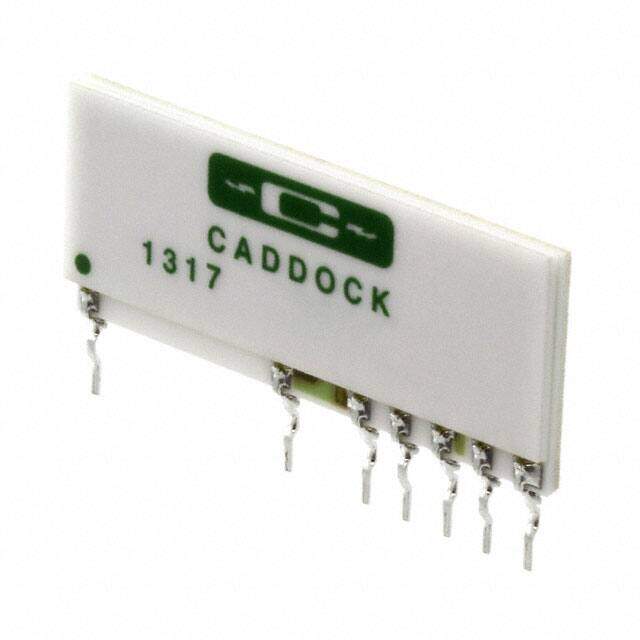

1776-C48
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP, 7 Leads
Category Resistors / Resistor Networks, Arrays
Description
1776 ARRAY/NETWORK RESISTOR 12-SIP 7Leads resistor network ±0.1% ±30ppm/C 1kOhm 10kOhm 101kOhm 1MOhm 10MOhm 1.200Lx0.110W 30.48mmx2.79mm
PDF
/
Buying Options
Total Price: USD $16.73
Unit Price: USD $16.7288
≥1 USD $16.7288
≥10 USD $14.30176
≥100 USD $13.381632
≥500 USD $12.545456
≥1000 USD $11.20724
≥3000 USD $11.123587
Inventory: 89
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.550 13.97mm
Height 13.97mm
Technical
Second/Last Element Resistance 1000.1Ohm
First Element Resistance 10000000Ohm
Network Type SPECIAL
Resistor-Ratio-Drift ±10ppm/°C
Power Per Element 62.5mW
Circuit Type Decade Resistor
Number of Resistors 5
Working Voltage 1200V
Number of Elements 5
Lead Length 3.81mm
Resistor Type ARRAY/NETWORK RESISTOR
Construction Rectangular
Number of Functions 1
Technology METAL GLAZE/THICK FILM
Additional Feature PRECISION, RATED AC VOLTAGE: 1200V
Applications Voltage Divider (TCR Matched)
Terminal Finish Tin/Silver (Sn/Ag)
Resistance 1kOhm 10kOhm 101kOhm 1MOhm 10MOhm
Temperature Coefficient ±30ppm/°C
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±0.1%
Size / Dimension 1.200Lx0.110W 30.48mmx2.79mm
Series 1776
Published 2010
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Number of Pins 7
Terminal Shape FLAT
Package / Case 12-SIP, 7 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
