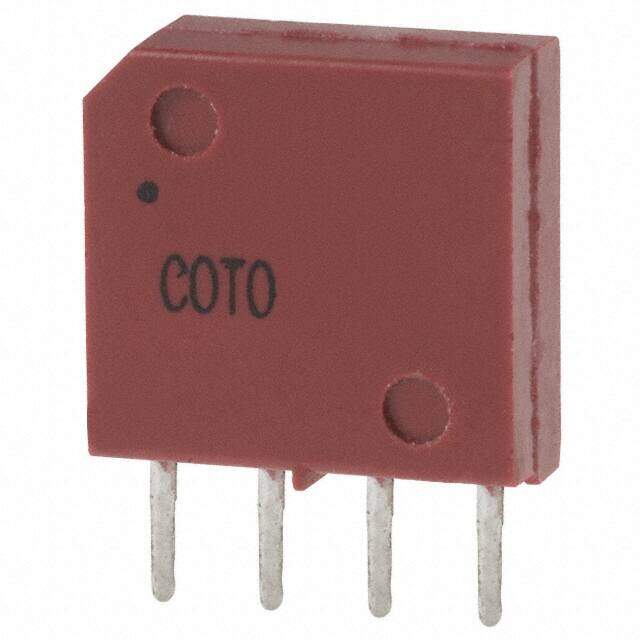

9007-12-50
RoHS
/
Package SIP
Category Relays / Reed Relays
Description
RELAY REED SPST 500MA 12V
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.724268
≥1 USD $2.724268
≥200 USD $1.087081
≥500 USD $1.051633
≥1000 USD $1.033252
Inventory: 3302
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Body Height 7.6mm
Technical
Contact (DC) Max Power Rating R Load 10W@200VDC
Dielectric Strength Between Coil and Contacts 1500 Vrms
Input Switching Control Type Random
Dielectric Strength Between Open Contacts 250 Vrms
PCB Hole Count 4
Coil/Input Supply Type DC
Coil Voltage (DC) 12V
Relay Action MOMENTARY
Contact/Output Supply Type AC/DC
Contact Voltage(AC)-Max 200V
Must Release Voltage 1VDC
Coil Power 72mW
Contact Rating (Current) 500mA
Must Operate Voltage 9VDC
Contact (DC) Max Rating R Load .5A@200VDC
Release Time 0.2ms
Coil Current 6mA
Switching Voltage 200VAC 200VDC -Max
Coil Type Non Latching
Coil Voltage 12VDC
Operate Time 0.5ms
Contact (AC) Max Rating R Load .5A@200VAC
Coil Resistance 2kOhm
Relay Type Reed
Contact Form SPST-NO (1 Form A)
Throw Configuration SPST
Electrical Life 100000000 Cycle(s)
Contact Voltage(DC)-Max 200V
Sealing HERMETICALLY SEALED
Insulation Resistance 10GOhm
Contact Resistance 200mOhm
Physical Dimension 19.3mm x 5.08mm x 7.6mm
Body Breadth 5.08 mm
Body Length or Diameter 19.3mm
Approval Agency CSA, UL
Termination Style PC Pin
Reference Standard CSA; UL
Terminal Finish Matte Tin (Sn)
Termination PC Pin
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series 9000, Spartan
Published 2010
Packaging Tube
Operating Temperature -20°C~85°C
Physical
Package / Case SIP
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 25 Weeks
