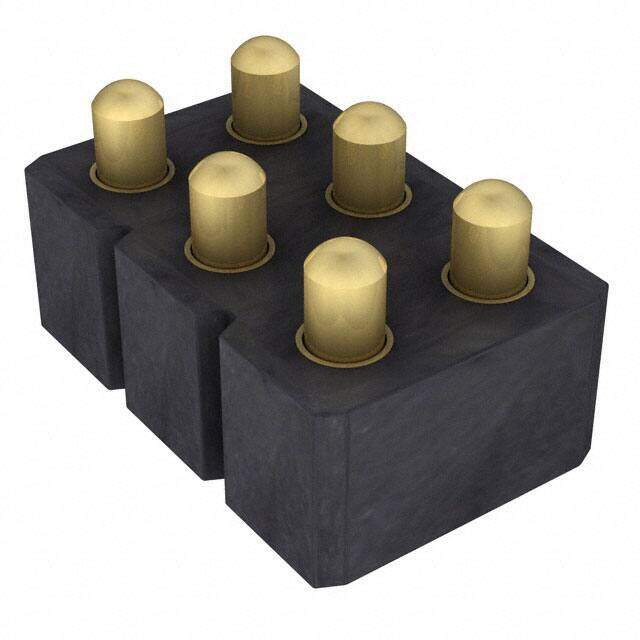

813-SS-006-30-023101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Spring Loaded
Description
CONN SPRING LOAD 6POS DUAL SMD
PDF
/
Inventory: 995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 19.7μin 0.50μm
Technical
Contact Pattern RECTANGULAR
Durability 100000 Cycles
Row Spacing 0.100 (2.54mm)
Insulation Resistance 10000000000Ohm
Contact Resistance 15mOhm
Contact Style RND PIN-SKT
Rated Current (Signal) 3.5A
Body Depth 0.171 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Contact Gender MALE
PCB Contact Pattern RECTANGULAR
Number of Contacts 6
Number Of PCB Rows 2
Body Length or Diameter 0.3 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature LOW PROFILE
Number of Rows 2
Connector Type Piston
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 813
Published 2012
Packaging Bulk
Physical
Material Brass
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
