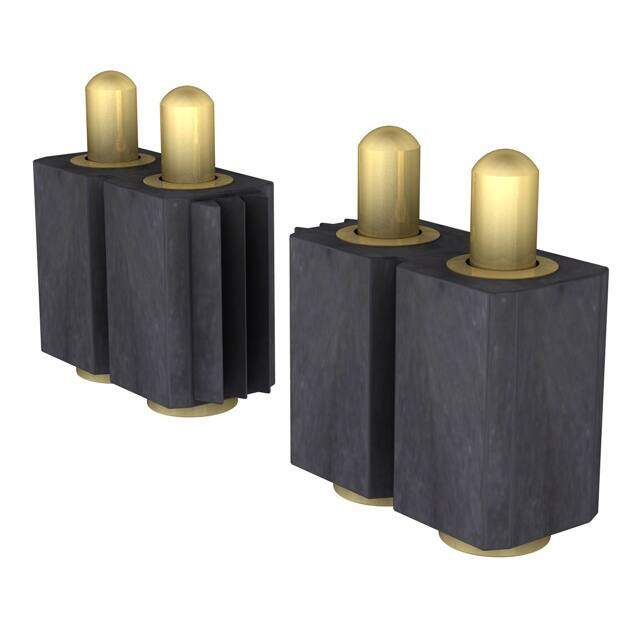

811-SS-010-30-008101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Spring Loaded
Description
Conn Spring Loaded Connector HDR 10 POS 2.54mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $5.12
Unit Price: USD $5.118562
≥1 USD $5.118562
≥10 USD $4.828833
≥100 USD $4.555506
≥500 USD $4.297649
≥1000 USD $4.054376
Inventory: 1350
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Material Brass
Housing Material Polychlorinated
Technical
Packaging Bulk
Published 2010
Series 811
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Piston
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 1
Gender Male
Voltage - Rated 150V
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Pitch 0.100 2.54mm
Orientation Straight
Depth 2.54mm
Current Rating 3.5A
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 1
Number of Contacts 10
PCB Contact Pattern RECTANGULAR
Housing Color Black
Contact Style RND PIN-SKT
Contact Resistance 15mOhm
Max Voltage Rating (AC) 100V
Max Current Rating 3.5A
Contact Pattern RECTANGULAR
Dimensions
Height 1.8mm
Length 25.4mm
Contact Finish Thickness 19.7μin 0.50μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
