802-10-008-30-507101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Spring Loaded
Description

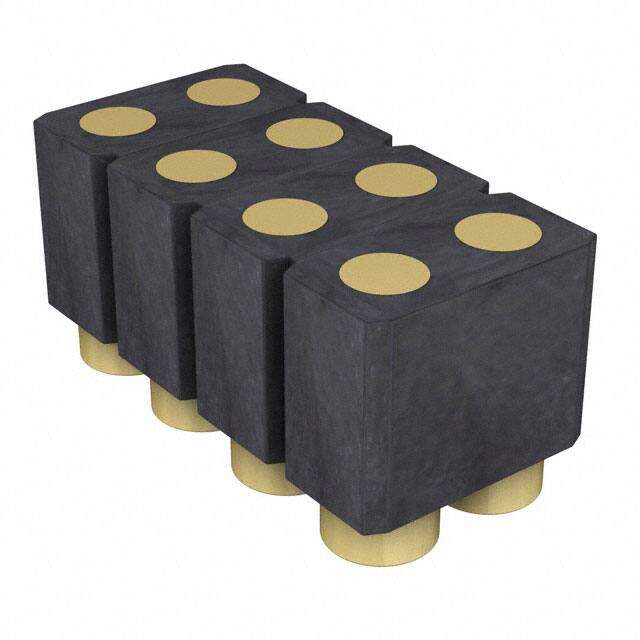

Preci-Dip 2.54mm 8 Way 2 Row Straight Surface Mount Male Multiway Connector
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.34904
≥100 USD $1.29184
≥500 USD $1.262976
≥1000 USD $1.2056
≥3000 USD $1.090742
Inventory: 13273
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Material Brass
Housing Material Polychlorinated
Technical
Packaging Bulk
Published 2010
Series 802
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Mating Target
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Male
Voltage - Rated 150V
Subcategory Headers and Edge Type Connectors
Pitch 0.100 2.54mm
Orientation Straight
Depth 5.08mm
Current Rating 3.5A
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
Number of Contacts 8
PCB Contact Pattern RECTANGULAR
Housing Color Black
Contact Style RND PIN-SKT
Insulation Resistance 10000000000Ohm
Row Spacing 0.100 (2.54mm)
Max Voltage Rating (AC) 100V
Max Current Rating 3.5A
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1400VAC V
Contact Pattern RECTANGULAR
Dimensions
Height 4mm
Length 10.16mm
Contact Finish Thickness 10.0μin 0.25μm
Plating Thickness 10μin
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
