836-22-003-10-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Spring Loaded
Description

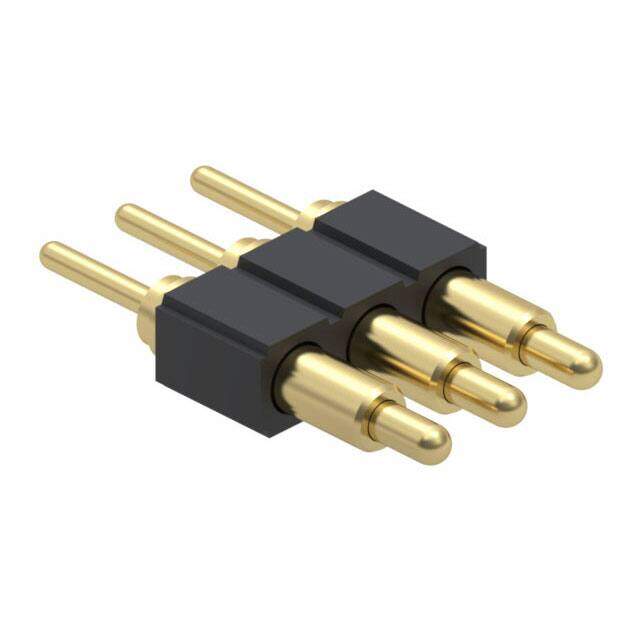

MILL MAX - 836-22-003-10-001101 - CONNECTOR, HEADER, 3POS, 1ROW, 2MM
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.5432
≥1 USD $2.5432
≥10 USD $2.30648
≥100 USD $2.031832
≥500 USD $1.727035
≥1000 USD $1.47305
≥3000 USD $1.320669
Inventory: 310
Minimum: 1
-
+
Technical Details
Technical
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Subcategory Headers and Edge Type Connectors
Number of Rows 1
Connector Type Piston
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series 836
Published 2016
Packaging Tube
Contact Pattern RECTANGULAR
Dielectric Withstanding Voltage 990VAC V
Termination Type SOLDER
Contact Resistance 20mOhm
Contact Style RND PIN-SKT
Rated Current (Signal) 2A
UL Flammability Code 94V-0
Contact Gender MALE
Body Breadth 0.079 inch
Number of Contacts 3
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
Physical
Mounting Option 1 LOCKING
Material Copper Alloy
Mounting Type Through Hole
Supply Chain
Factory Lead Time 3 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Plating Thickness 20μin
Contact Finish Thickness 10.0μin 0.25μm
