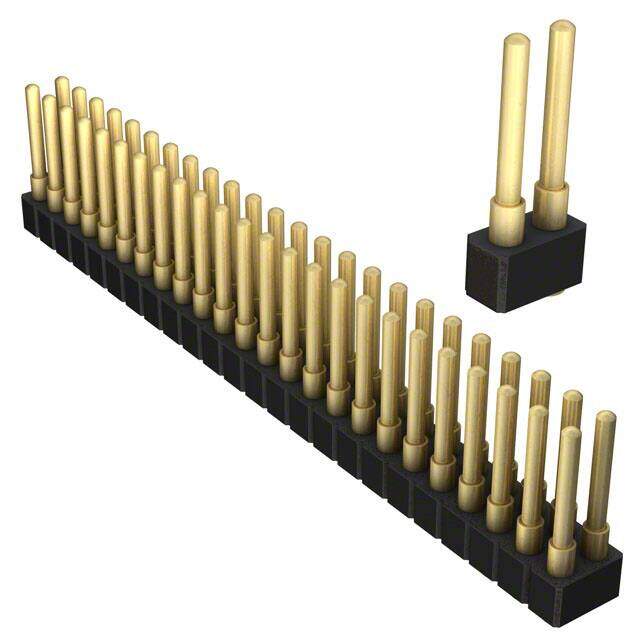

814-22-048-30-007101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Spring Loaded
Description
CONN SPRING 48POS DUAL .390 SMD
PDF
/
Inventory: 1572
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 20.0μin 0.51μm
Width 5.08mm
Length 61mm
Height 9.91mm
Technical
Contact Pattern RECTANGULAR
Durability 1000000 Cycles
Dielectric Withstanding Voltage 990VAC V
Row Spacing 0.100 (2.54mm)
Insulation Resistance 10000000000Ohm
Contact Style RND PIN-SKT
Rated Current (Signal) 2A
Body Depth 0.198 inch
Housing Color Black
UL Flammability Code 94V-0
Contact Gender MALE
PCB Contact Pattern RECTANGULAR
Number of Contacts 48
Lead Pitch 2.54mm
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.90.40.00
Additional Feature LOW PROFILE
Number of Rows 2
Connector Type Piston
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e4
Series 814
Published 2007
Packaging Bulk
Physical
Material Copper Alloy
Mounting Type Surface Mount
Mount Surface Mount
