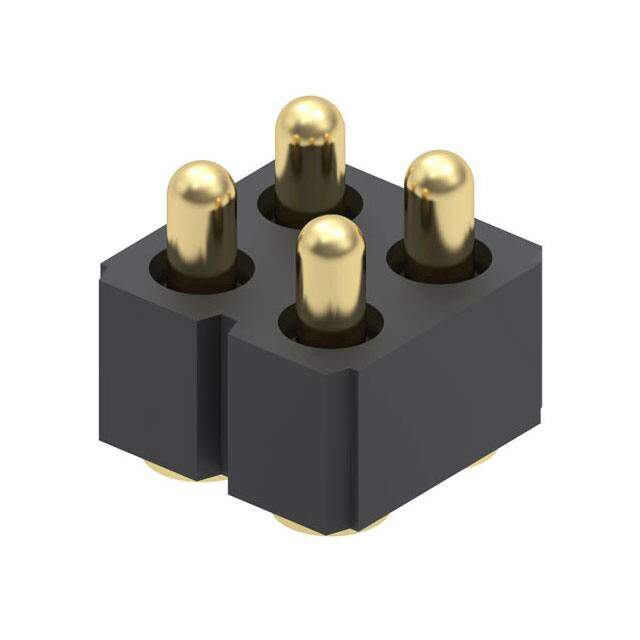

813-22-004-30-002101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Spring Loaded
Description
Conn Spring Loaded Connector HDR 4 POS 2.54mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.64
≥1 USD $2.64
≥10 USD $2.39448
≥100 USD $2.268288
≥500 USD $2.215488
≥1000 USD $2.11002
≥3000 USD $1.846249
Inventory: 101
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness 20.0μin 0.51μm
Length 5.08mm
Technical
Max Voltage Rating (DC) 150V
Max Voltage Rating (AC) 100V
Row Spacing 0.100 (2.54mm)
Contact Resistance 20mOhm
Number of Contacts 4
Contact Finish Gold
Current Rating 3A
Reach Compliance Code unknown
Depth 5.08mm
Orientation Straight
Pitch 0.100 2.54mm
Number of Rows 2
Color Black
Connector Type Piston
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 813
Published 2011
Packaging Tube
Physical
Housing Material Polychlorinated
Material Copper Alloy
Mounting Type Surface Mount
Mount PCB, Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 3 Weeks
