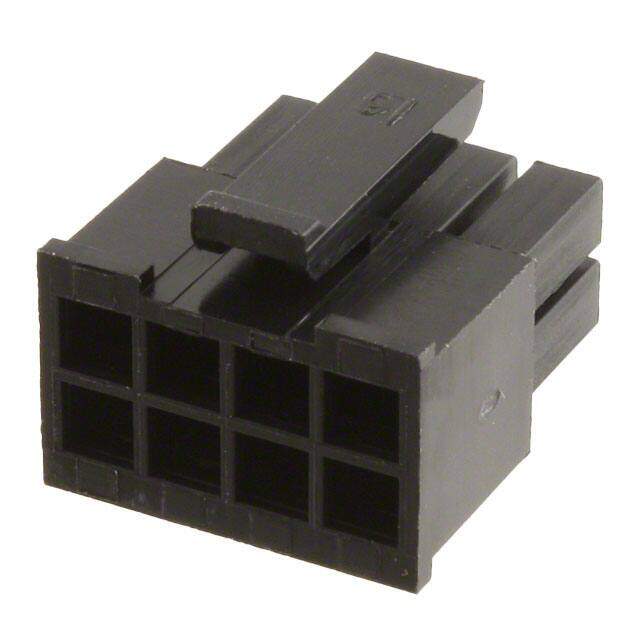

662008113322
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RCPT HSG 8POS 3.00MM
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.788294
≥1 USD $0.788294
≥10 USD $0.743675
≥100 USD $0.701585
≥500 USD $0.661878
≥1000 USD $0.62441
Inventory: 6762
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bag
Series WR-MPC3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -25°C
Color Black
Number of Rows 2
Gender Receptacle
Voltage - Rated 250V
Fastening Type Latch Lock
Contact Type Female Socket
Pitch 0.118 3.00mm
Current Rating 5A
Number of Contacts 8
Contact Gender Female
Insulation Resistance 1GOhm
Row Spacing 0.118 (3.00mm)
Note Contacts Not Included
Contact Termination Crimp
Insulation Insulated
Dimensions
Height 14mm
Length 12.85mm
Width 12.85mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
