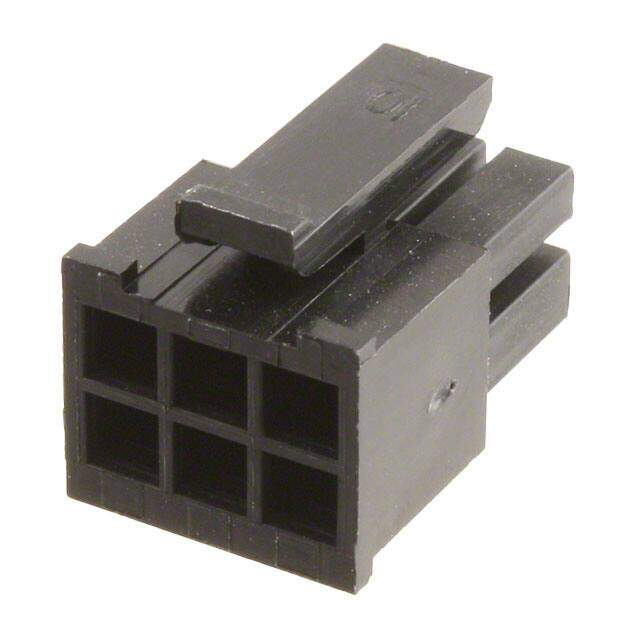

662006113322
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RCPT HSG 6POS 3.00MM
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.668626
≥1 USD $0.668626
≥10 USD $0.630777
≥100 USD $0.595077
≥500 USD $0.561394
≥1000 USD $0.529614
Inventory: 6561
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 9.85mm
Length 9.85mm
Height 14mm
Technical
Insulation Insulated
Contact Termination Crimp
Note Contacts Not Included
Row Spacing 0.118 (3.00mm)
Insulation Resistance 1GOhm
Contact Gender Female
Number of Contacts 6
Current Rating 5A
Pitch 0.118 3.00mm
Contact Type Female Socket
Fastening Type Latch Lock
Voltage - Rated 250V
Gender Receptacle
Number of Rows 2
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Number of Positions 6
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-MPC3
Packaging Bag
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 15 Weeks
