649008113322
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

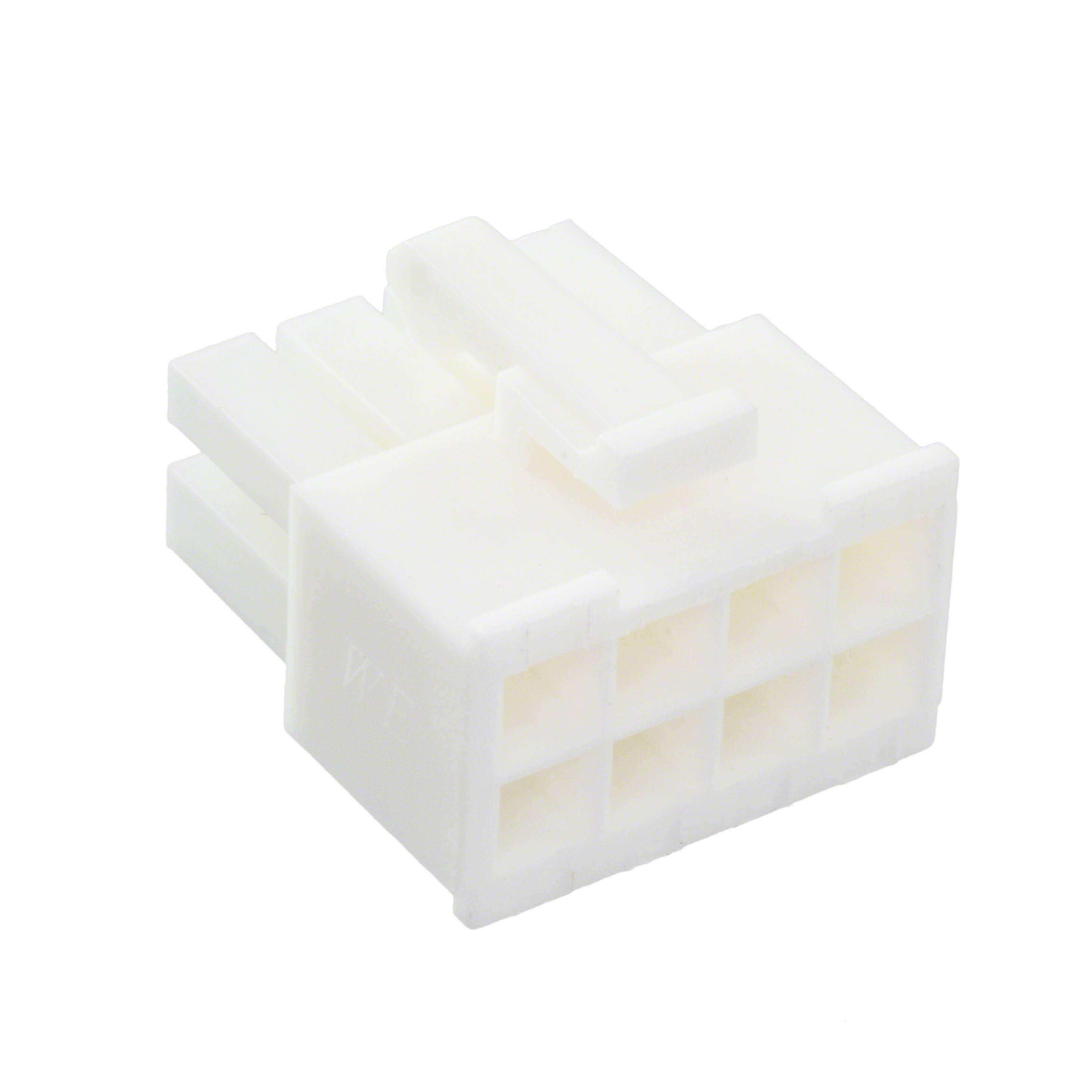

CONN RCPT HSG 8POS 4.20MM
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.372696
≥1 USD $0.372696
≥10 USD $0.351608
≥100 USD $0.331701
≥500 USD $0.312922
≥1000 USD $0.295215
Inventory: 6942
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 18mm
Length 18mm
Height 19.6mm
Technical
Insulation Insulated
Contact Termination Crimp
Note Contacts Not Included
Row Spacing 0.165 (4.20mm)
Insulation Resistance 1GOhm
Contact Gender Female
Number of Contacts 8
Current Rating 7A
Pitch 0.165 4.20mm
Contact Type Female Socket
Fastening Type Latch Lock
Voltage - Rated 600V
Gender Receptacle
Number of Rows 2
Color White
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-MPC4
Packaging Bag
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Contact Material Copper
Supply Chain
Factory Lead Time 16 Weeks
