DTM06-4S-E007
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

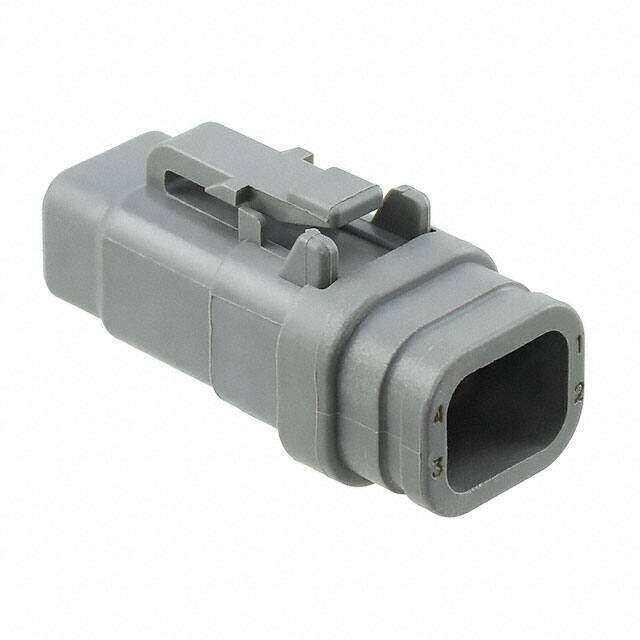

Deutsch DTM Series, 4 Way Plug Connector, with Crimp Termination
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6847
≥1 USD $2.6847
≥10 USD $2.20305
≥100 USD $2.13465
≥500 USD $2.0653
≥1000 USD $1.9969
Inventory: 132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 15.24mm
Length 30.099mm
Height 17.653mm
Technical
Polarized Yes
Hybrid Connector No
Contact Termination Crimp
ELV Compliant
Note Contacts Not Included
Operating Supply Voltage 250V
Current Rating 7.5A
Depth 43.69mm
Pitch 4mm
Contact Type Female Socket
Fastening Type Latch Lock
Gender Male
Number of Rows 2
Color Grey
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 4
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature IP68, IP6K9K, Shrink Boot Adapter
Series DTM
Published 2011
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Contact Plating Nickel
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 10 Weeks
