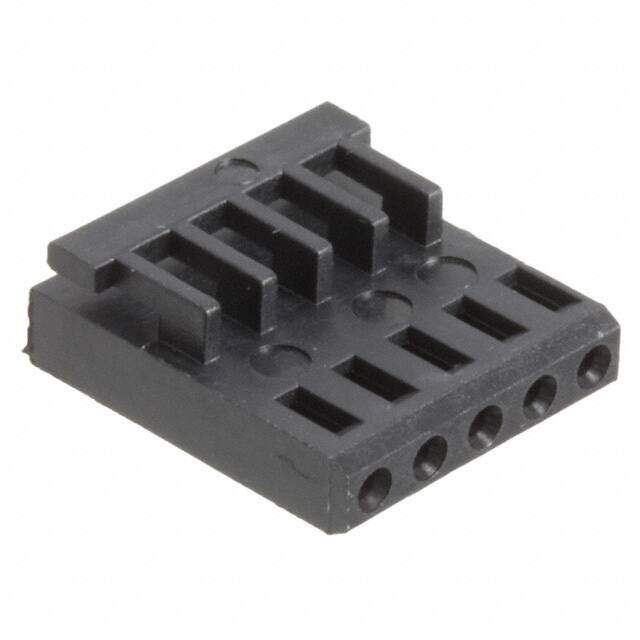

926475-5 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.90112
≥100 USD $0.742456
≥500 USD $0.583669
≥1000 USD $0.500289
≥3000 USD $0.491401
Inventory: 15978
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Length 12.7mm
Height 14.2mm

Technical

Wire Size (Max) 20 AWG
Wire Size (Min) 32 AWG
Contact Termination Crimp
Insertion Force-Max 4.448 N
Number of Poles 5
Note Contacts Not Included
Row Spacing 2.54 mm
Rated Current (Signal) 3A
Working Voltage 250V
Operating Supply Voltage 250V
UL Flammability Code 94V-0
Contact Gender Female
Reliability COMMERCIAL
Voltage - Rated AC 250V
Reference Standard UL
Current Rating 3A
Orientation Straight
Total Number of Contacts 5
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 250V
Subcategory Headers and Edge Type Connectors
Number of Rows 1
Color Black
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series AMPMODU Mod IV
Published 2005
Packaging Bulk

Physical

Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, PCB
Contact Plating Gold
Contact Material Bronze

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 29 Weeks
