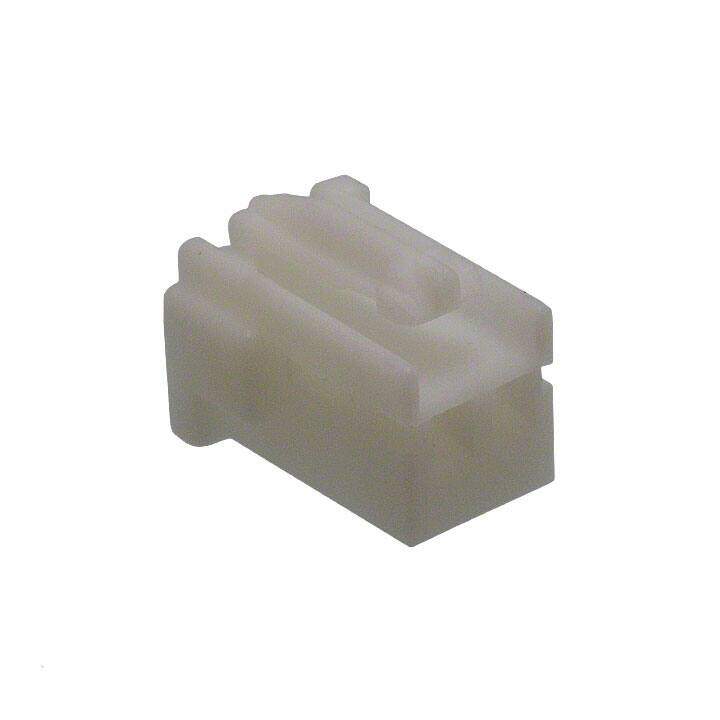

917686-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Automotive Connectors 2.5SIG DLOCK PLG HSG 2P
PDF
/
Buying Options
Total Price: USD $0.15
Unit Price: USD $0.1496
≥1 USD $0.1496
≥10 USD $0.13288
≥100 USD $0.132
≥500 USD $0.130416
≥1000 USD $0.120472
≥3000 USD $0.099018
Inventory: 7576
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 8.05mm
Length 279.4mm
Height 190.5mm
Technical
Contact Design PREASSEM CONN
Mating Retention With
Contact Termination Crimp
Contact Current Rating 3A
Sealable No
Max Voltage Rating (DC) 5.05kV
Wire/Cable Gauge 20 AWG
Durability 30 Cycles
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 50V
Note Contacts Not Included
Insulation Resistance 500000000Ohm
Rated Current (Signal) 3A
Operating Supply Voltage 250V
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reliability COMMERCIAL
Reference Standard UL
Current Rating 3A
Depth 11mm
Orientation Straight
Total Number of Contacts 2
Pitch 0.098 2.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Voltage - Rated 50V
Gender Male
Number of Rows 1
Color Natural
Min Operating Temperature -22°C
Max Operating Temperature 221°C
Number of Positions 2
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Signal Double Lock
Published 1997
Packaging Bulk
Physical
Housing Material Nylon
Shell Material POLYAMIDE66
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 19 Weeks
