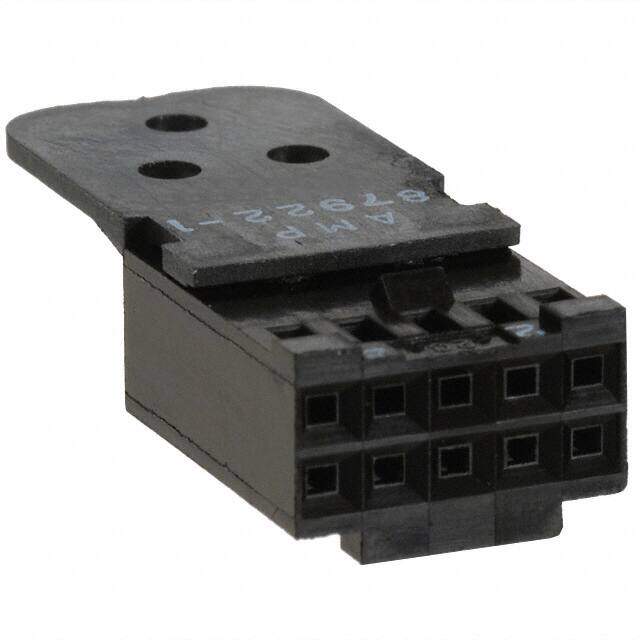

87922-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN HOUSNG 10POS .100 POL W/STR
PDF
/
Buying Options
Total Price: USD $4.27
Unit Price: USD $4.268
≥1 USD $4.268
≥10 USD $3.73824
≥100 USD $3.346464
≥500 USD $2.778917
Inventory: 162
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 29.21mm
Length 12.7mm
Height 7.32mm
Technical
Contact Termination Crimp
Contact Current Rating 3A
Wire/Cable Gauge 32 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 32 AWG
Dielectric Withstanding Voltage 750VAC V
Max Voltage Rating (AC) 250V
ELV Compliant
Body/Shell Style PLUG
Note Contacts Not Included
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Rated Current (Signal) 3A
Operating Supply Voltage 250V
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Number of Conductors ONE
Current Rating 3A
Depth 29.21mm
Orientation Straight
Total Number of Contacts 10
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male or Female
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 10
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Strain Relief
Series AMPMODU Mod IV
Published 1997
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 12 Weeks
