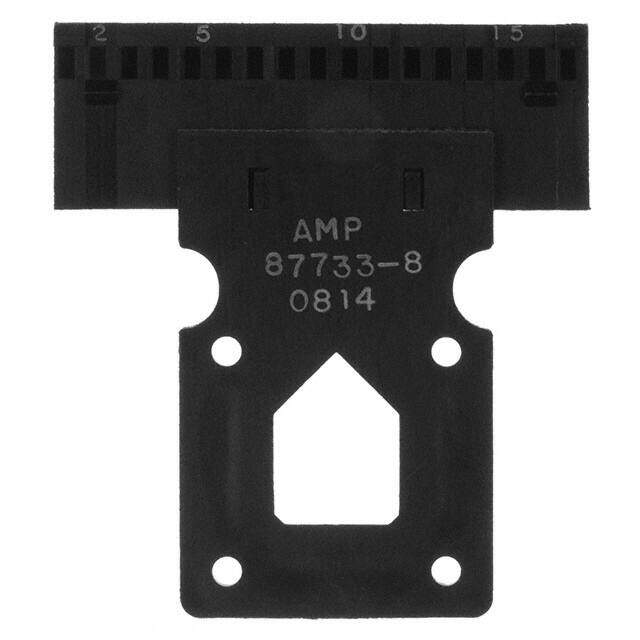

87733-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN HOUSNG 34POS .100 POL W/STR
PDF
/
Buying Options
Total Price: USD $5.62
Unit Price: USD $5.6232
≥1 USD $5.6232
≥10 USD $4.693216
≥100 USD $4.409592
≥500 USD $3.661733
Inventory: 346
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Length 43.18mm
Height 6.1mm
Technical
Contact Termination Crimp
Contact Current Rating 3A
Wire/Cable Gauge 32 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 32 AWG
Max Voltage Rating (AC) 250V
ELV Compliant
Note Contacts Not Included
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Operating Supply Voltage 250V
Approval Agency CSA
Voltage - Rated AC 250V
Current Rating 3A
Depth 48.26mm
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Male or Female
Fastening Type Locking Ramp
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 34
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Strain Relief
Series AMPMODU Mod IV
Published 1997
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 15 Weeks
