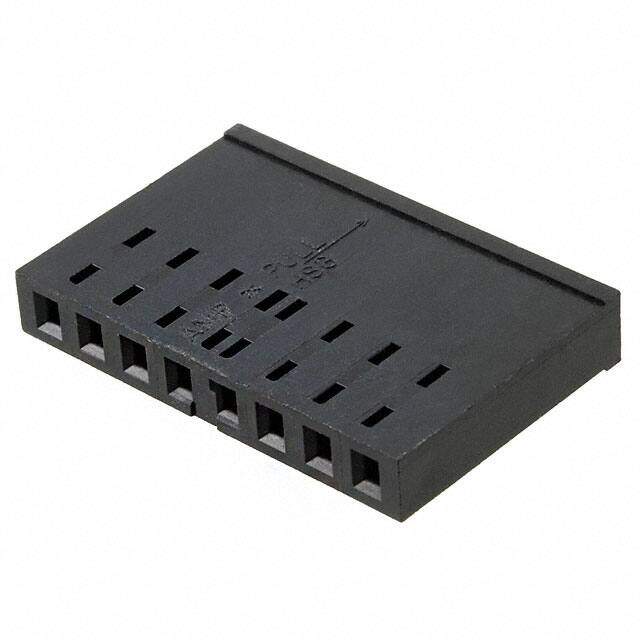

87270-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Headers & Wire Housings 08 LOCKING CLIP HSG SR 0.156CL
PDF
/
Inventory: 9089
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Bronze
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Technical
Packaging Bulk
Published 1997
Series AMPMODU
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 1
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 3.9624mm
Total Number of Contacts 8
Orientation Straight
Current Rating 5A
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 5A
Insulation Resistance 5000000000Ohm
Note Contacts Not Included
Body/Shell Style PLUG
ELV Compliant
Contact Current Rating 5A
Contact Termination Crimp
Mating Retention With
Dimensions
Height 5.588mm
Length 33.274mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
