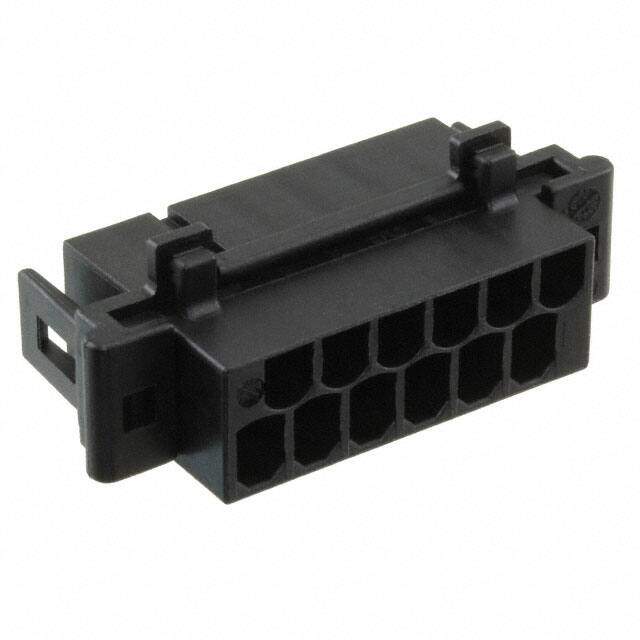

827603-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Automotive Connectors 12P JUNIOR-TIMER GH
PDF
/
Buying Options
Total Price: USD $1.47
Unit Price: USD $1.470324
≥1 USD $1.470324
≥10 USD $1.387098
≥100 USD $1.308583
≥500 USD $1.23451
≥1000 USD $1.164633
Inventory: 5683
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
RoHS Status RoHS Compliant
Dimensions
Width 16.3mm
Length 48.006mm
Height 21.9964mm
Technical
Polarized Yes
Hybrid Connector No
Mating Tab Width 2.794mm
Contact Termination Crimp
Circuit Application Signal
ELV Compliant
Note Contacts Not Included
Row Spacing 0.197 (5.00mm)
Empty Shell YES
Mating Information MULTIPLE MATING PARTS AVAILABLE
Depth 22mm
Orientation Straight
Total Number of Contacts 12
Pitch 0.197 5.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 2
Color Black
Number of Positions 12
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Junior Power Timer
Published 2007
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 15 Weeks
