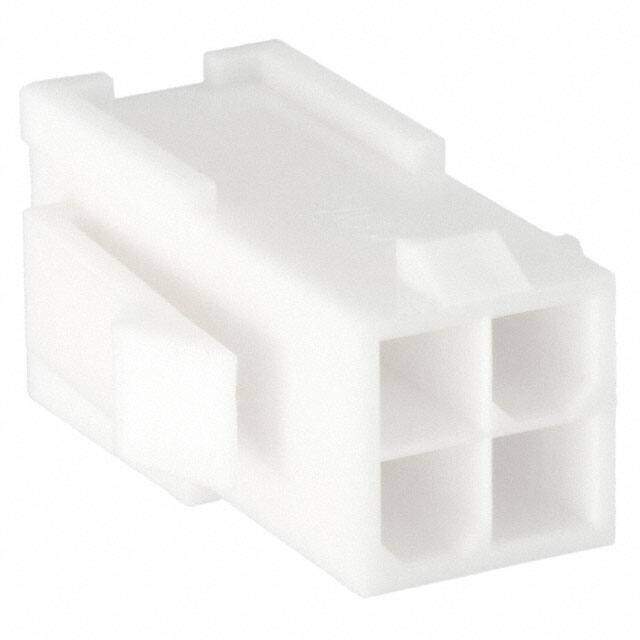

794598-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Pin & Socket Connectors 04P DUAC PLUG HSG 94V-0 PAN MT
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.845635
≥1 USD $0.845635
≥10 USD $0.797773
≥100 USD $0.752624
≥500 USD $0.710014
≥1000 USD $0.669828
Inventory: 1172
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 23.876mm
Length 9.6mm
Height 11.7mm
Technical
VDE Tested Yes
Contact Termination Crimp
Wire/Cable Gauge 26 AWG
Durability 50 Cycles
ELV Compliant
Note Contacts Not Included
Row Spacing 0.165 (4.20mm)
Insulation Resistance 1000000000Ohm
Contact Resistance 5mOhm
Empty Shell NO
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Current Rating 9A
Orientation Straight
Total Number of Contacts 4
Pitch 0.165 4.20mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Gender Male
Number of Rows 2
Color White
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 4
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series AMP-DUAC
Published 2004
Packaging Bulk
Physical
Housing Material Nylon
Shell Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 14 Weeks
