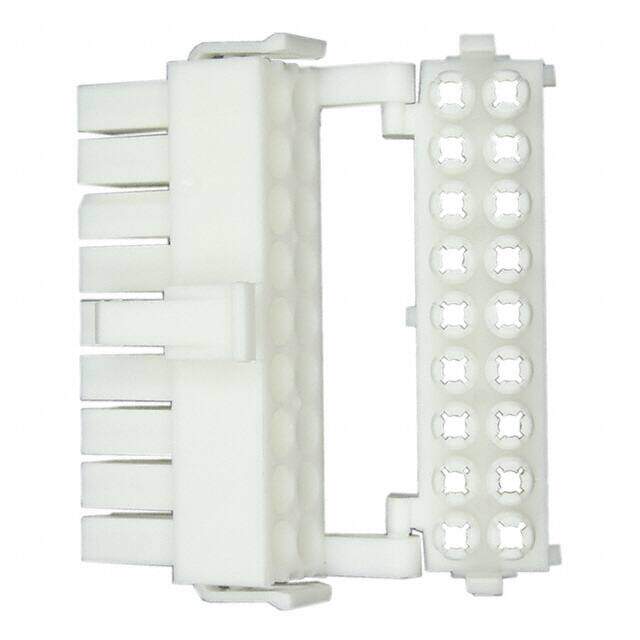

794208-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG 18POS MINI UNIV-MATE 2
PDF
/
Buying Options
Total Price: USD $2.22
Unit Price: USD $2.2176
≥1 USD $2.2176
≥10 USD $1.97208
≥100 USD $1.962048
≥500 USD $1.94216
≥1000 USD $1.771616
Inventory: 637
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material POLYAMIDE
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Series Mini-Universal MATE-N-LOK II
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Number of Rows 2
Voltage - Rated 600V
Fastening Type Latch Lock
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male or Female
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.163 4.14mm
Orientation Straight
Depth 23.75mm
Current Rating 9.5A
Approval Agency UL
Number of Contacts 18
Contact Gender Male
UL Flammability Code 94V-0
Empty Shell NO
Operating Supply Voltage 600V
Row Spacing 0.163 (4.14mm)
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 600V
Sealable No
Contact Termination Crimp
Contact Retention Without
Dimensions
Length 43.54mm
Width 17.25mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
