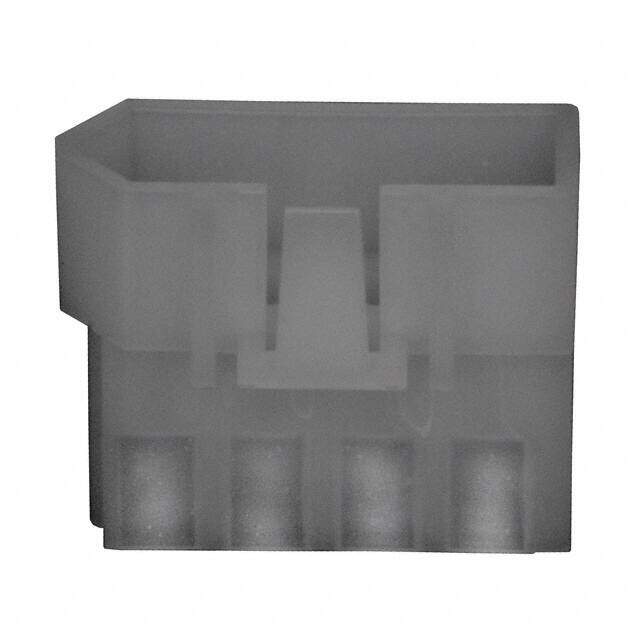

770810-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG POSI-LOCK 4POS .093
PDF
/
Inventory: 3030
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Width 9.27mm
Length 29.26mm
Technical
Contact Retention Without
Number of Signal Positions 4
Contact Termination Crimp
Sealable No
Max Voltage Rating (AC) 250V
ELV Compliant
Note Contacts Not Included
Operating Supply Voltage 600V
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Approval Agency CSA
Current Rating 13A
Orientation Straight
Total Number of Contacts 4
Pitch 6.3mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male or Female
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Latch Lock
Voltage - Rated 250V
Number of Rows 1
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Commercial .093 Pin and Socket
Published 1997
Packaging Bulk
Physical
Housing Material Nylon
Shell Material POLYAMIDE
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 10 Weeks
