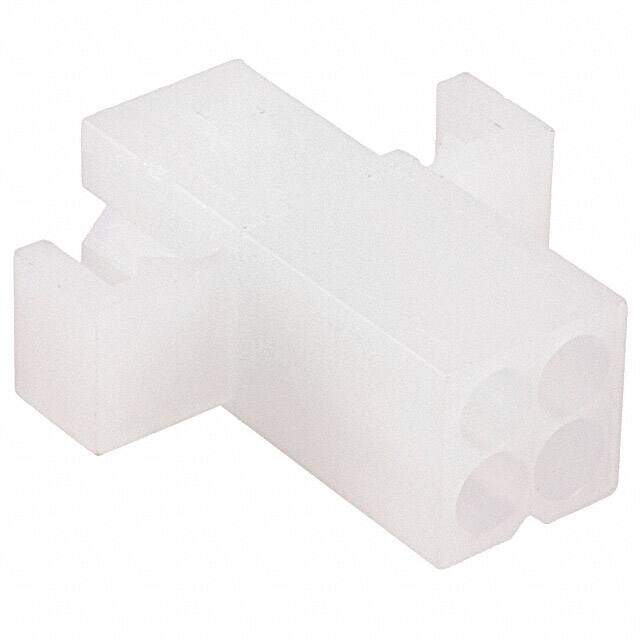

770441-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT W/DETENT 4POS .062
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.23848
≥100 USD $0.237248
≥500 USD $0.23232
≥1000 USD $0.198616
≥3000 USD $0.17871
Inventory: 2461
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Width 8.763mm
Length 22mm
Height 8.76mm
Technical
Insulation Diameter 2.794 mm
Contact Termination Crimp
Circuit Application Power
Sealable No
Max Voltage Rating (DC) 250.25kV
Wire/Cable Gauge 18 AWG
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 30 AWG
Wire/Cable Type Discrete
Max Voltage Rating (AC) 250V
ELV Compliant
Note Contacts Not Included
Row Spacing 0.145 (3.68mm)
Operating Supply Voltage 250V
Empty Shell NO
Contact Gender Female
Approval Agency UL
Depth 22.04mm
Orientation Straight
Total Number of Contacts 4
Pitch 0.145 3.68mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male or Female
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating GOLD/TIN
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 2
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 4
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Commercial .062 Pin and Socket
Published 1997
Packaging Bulk
Physical
Housing Material Nylon
Shell Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 12 Weeks
